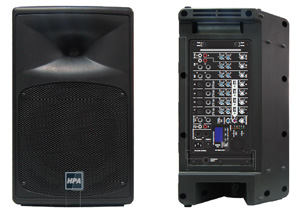

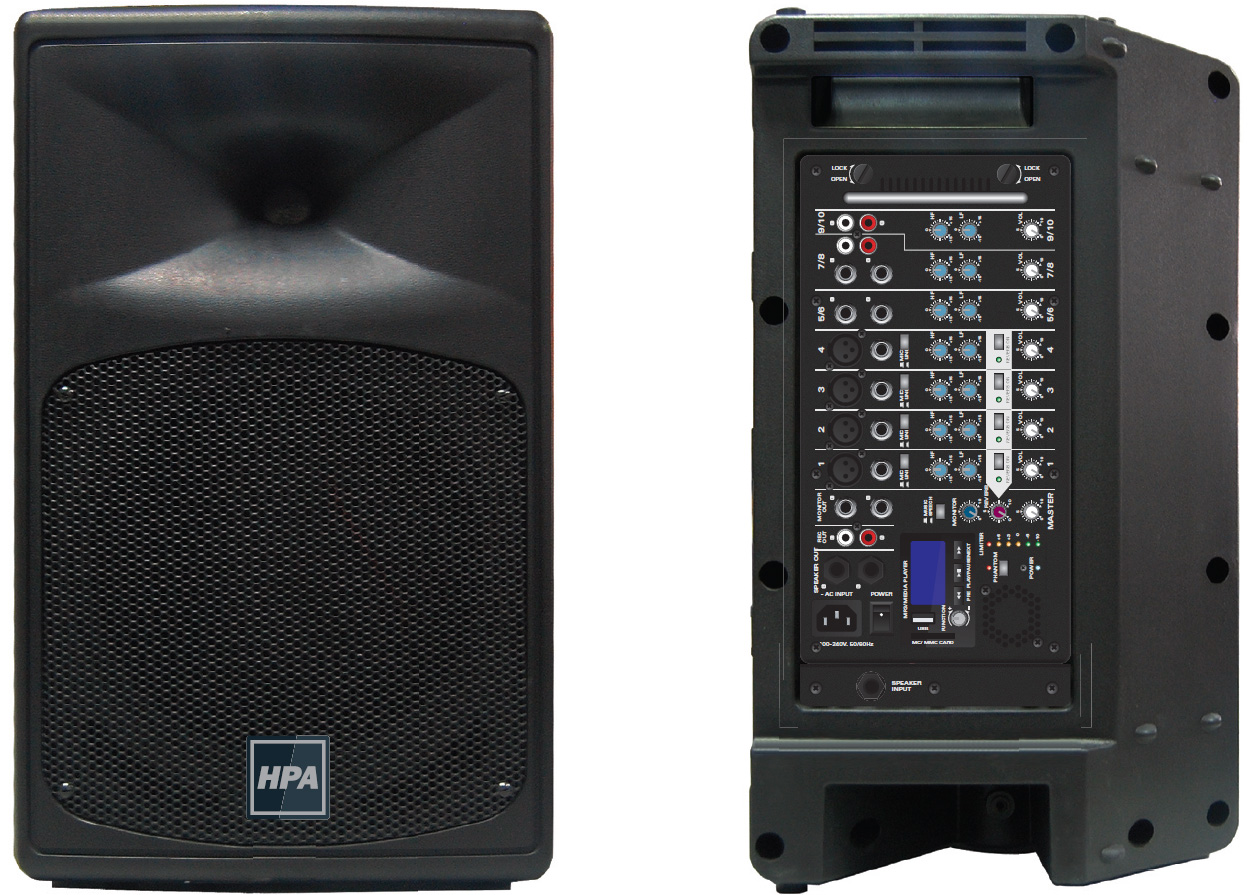

SM 500S

10" 250W Stereo Portable System

  • 250WX2 Rated Power output.
  • 4 Mono input and 4 Stereo input.
  • Mic/Line switch for Mono input.
  • 2 band EQ and Volume for each input channels, Effect switchs for Mono inputs.
  • Master output and Effect master Volume.
  • MP3 Player
Specifications SM500S
Rared Power @ THD 1% 200W x 2
Frequency Response 20Hz to 20KHz
THD @1/3 Rated Power 0.1%
Signal to Noise Ratio Mic 65dB
Line 80dB
Input Channel Equalization High: 10KHz 15dB, Low: 100Hz 15dB
Channel Crosstalk 70dB
Signal Processing 180Hz, 18dB/Oct
Effect Echo for Mic Input
Phantom Power 15V
AMP Class D
Power Supply Switching Mode
Speaker LF 10"
HF 1"
X-over Frequency 2.5KHz
Power Source 100V-240V, 50/60Hz
Weight (Net) 22 kg (1pair)
Dimensions (W x H x D) 334 x 273 x546 mm (1 unit)
*Specifications and design subject to change without notice for improvements.
