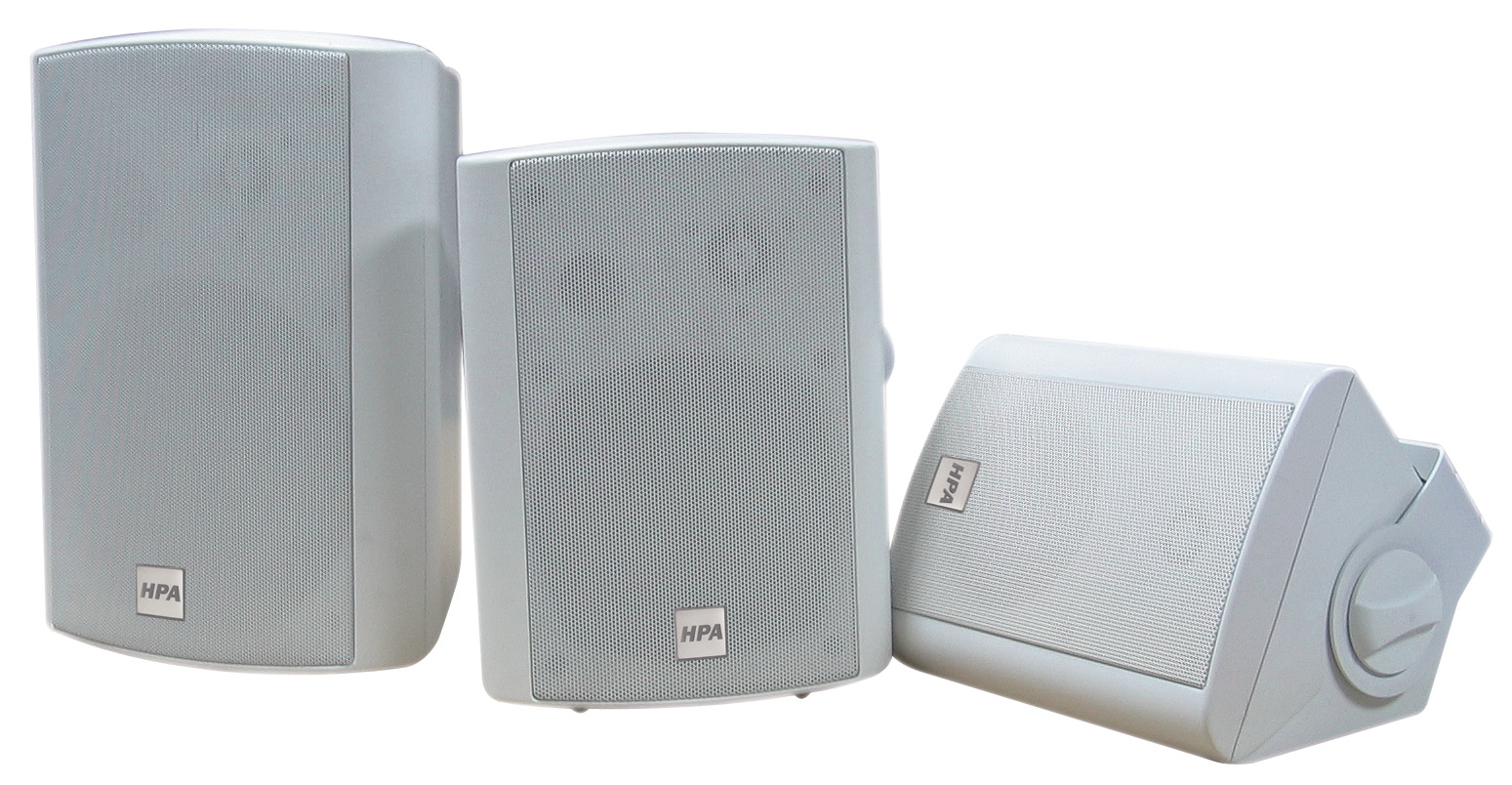

WM 20T/40T/60T/80T
2-way Wall Mountable Speaker |
|
|
- Compact plastic sealed design multi-purpose 2-way speaker system
- Optimized for most building interiors and semi-indoor installations
- Perfect frequency response & high efficiency for any music applications
- Built in matching transformer
- Easy to use by angle mounting bracket
- Weather resistant for versatile installation choices
|
| Specifications |
WM20T |
WM40T |
WM60T |
WM80T |
| Enclosure |
2-way bass reflex |
| Woofer |
4” PP cone |
5” PP cone |
6 1/2” PP cone |
8” PP cone |
| Tweeter |
13mm PEI dome |
20mm Fabric dome |
25mm Fabric dome |
25mm Fabric dome |
| Rated input power |
20 Watts RMS/80 Watts Peak |
40 Watts RMS/160 Watts |
60 Watts RMS/240 Watts Peak |
80 Watts RMS/320 Watts Peak |
| Impedance |
500Ω, 1kΩ, 2kΩ |
250Ω, 500Ω, 1kΩ |
166Ω, 330Ω, 660Ω |
8Ω, 125Ω, 250Ω, 500Ω |
| SPL (1Watt/1m) |
84dB |
86dB |
88dB |
90dB |
| Crossover Frequency |
3.5kHz |
| Frequency Response |
60Hz - 20kHz |
40Hz - 20kHz |
40Hz - 20kHz |
60Hz - 20kHz |
| Weight (Net) |
2.4kg |
3kg |
4.2kg |
7.1kg |
| Dimensions (WxHxD) |
145 X 225 X 161 mm |
167 X 250 X185 mm |
217 X 302 X191 mm |
295X 440 X290 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
