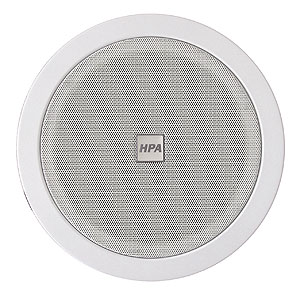

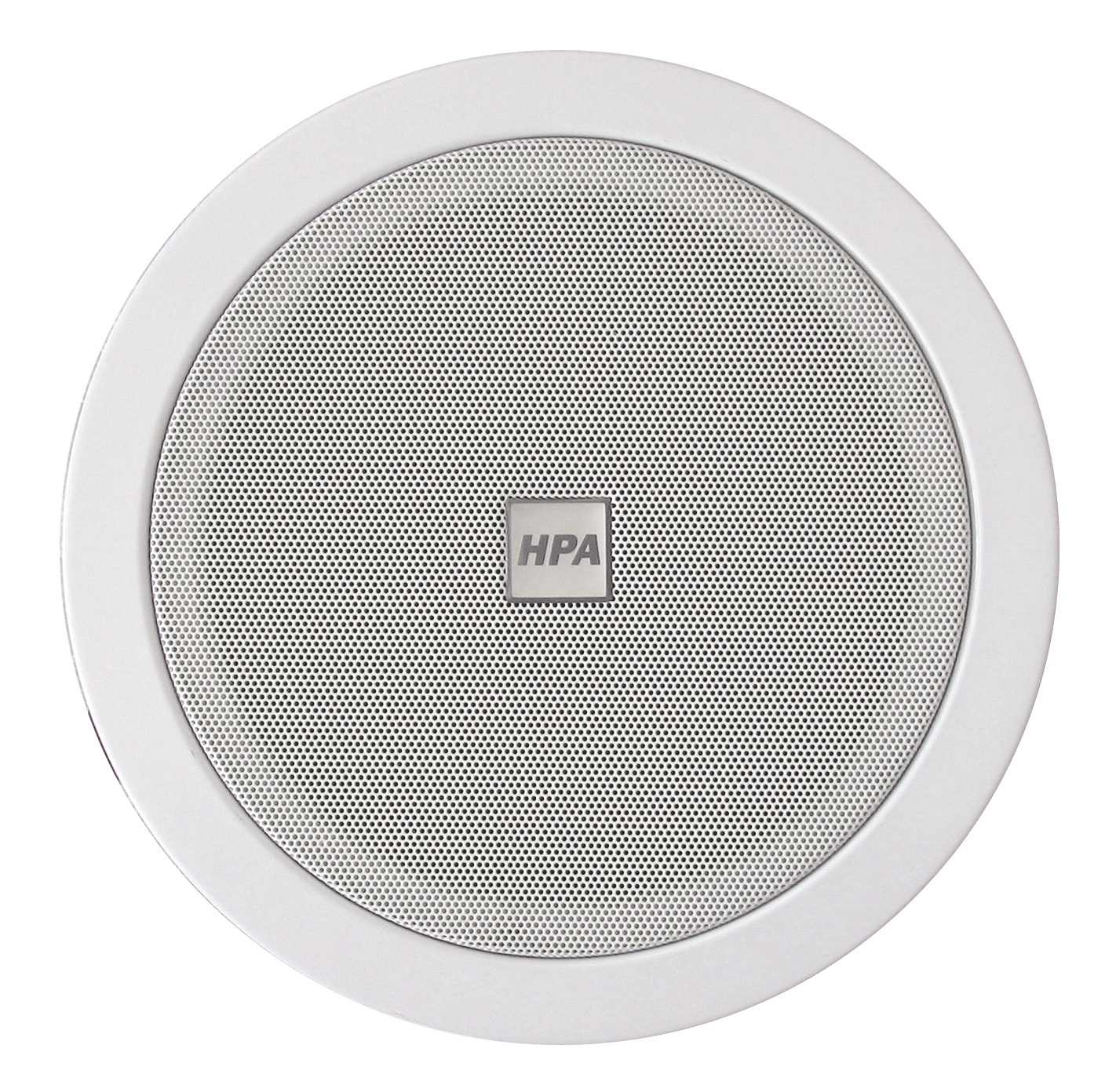

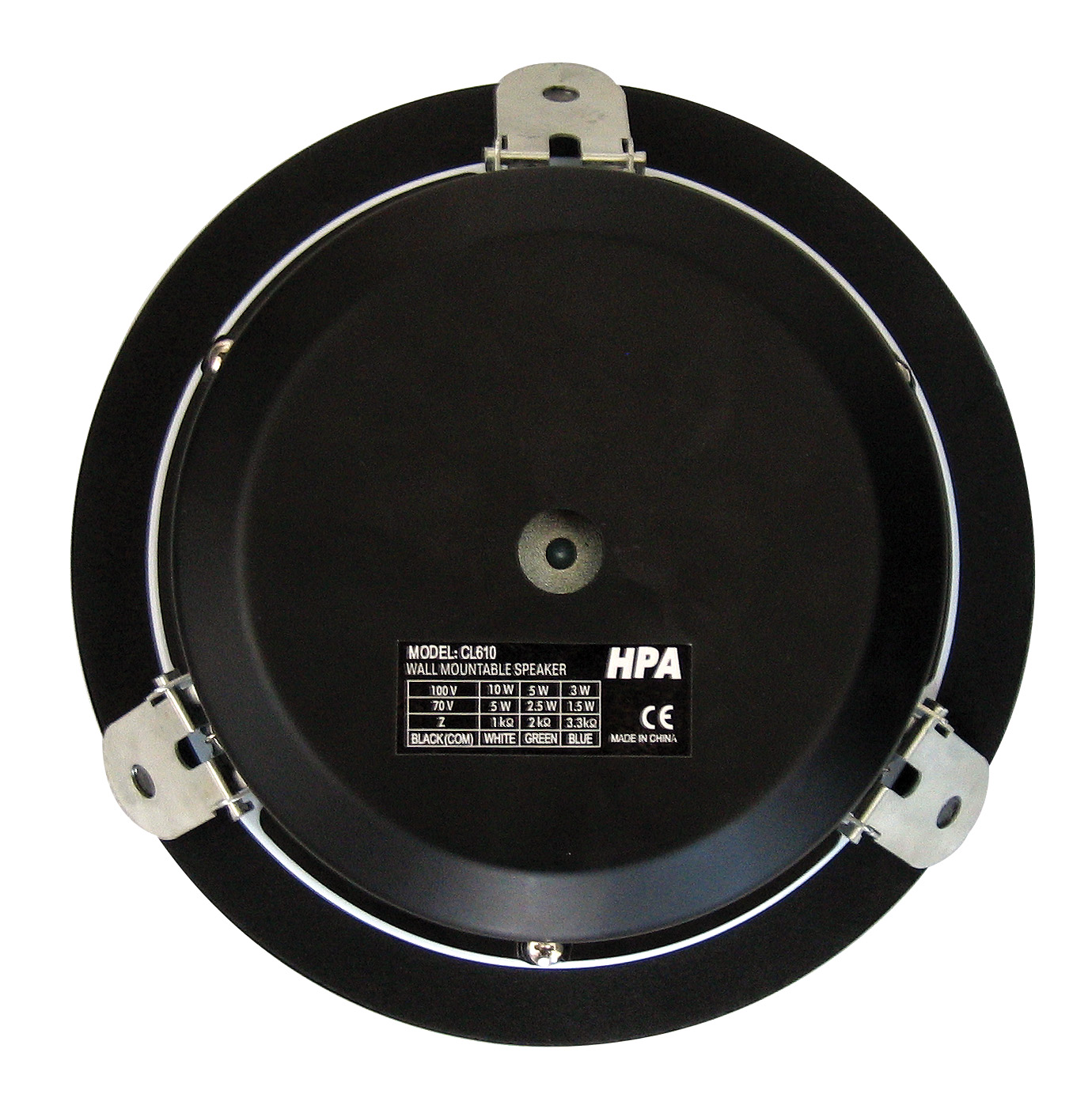

CL 603/610/603S/610S
Full Range Ceiling Speaker |
|
|
- Compact plastic sealed design full range speaker system (CL 603/610)
- Solid steel sealed design full range speaker system (CL 603S/610S)
- Optimized for most building interiors
- Perfect frequency response and high efficiency for PA and BGM applications
- Convenient & easy installation
|
| Specifications |
CL603 |
CL610 |
CL603S |
CL610S |
| Speaker Unit |
6 1/2” Paper Cone |
| Rated input power (RMS) |
3 Watts |
10 Watts |
3 Watts |
10 Watts |
| Impedance |
3.3kΩ, 5kΩ, 10kΩ |
1kΩ, 2kΩ, 3.3kΩ |
3.3kΩ, 5kΩ, 10kΩ |
1kΩ, 2kΩ, 3.3kΩ |
| SPL (1Watt/1m) |
90dB |
| Frequency Response |
65Hz - 12kHz |
| Weight (Net) |
0.73 kg |
0.74 kg |
1.05 kg |
1.06 kg |
| Dimensions (D x H) |
Φ228 x 65 mm |
Φ228 x 78 mm
|
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
