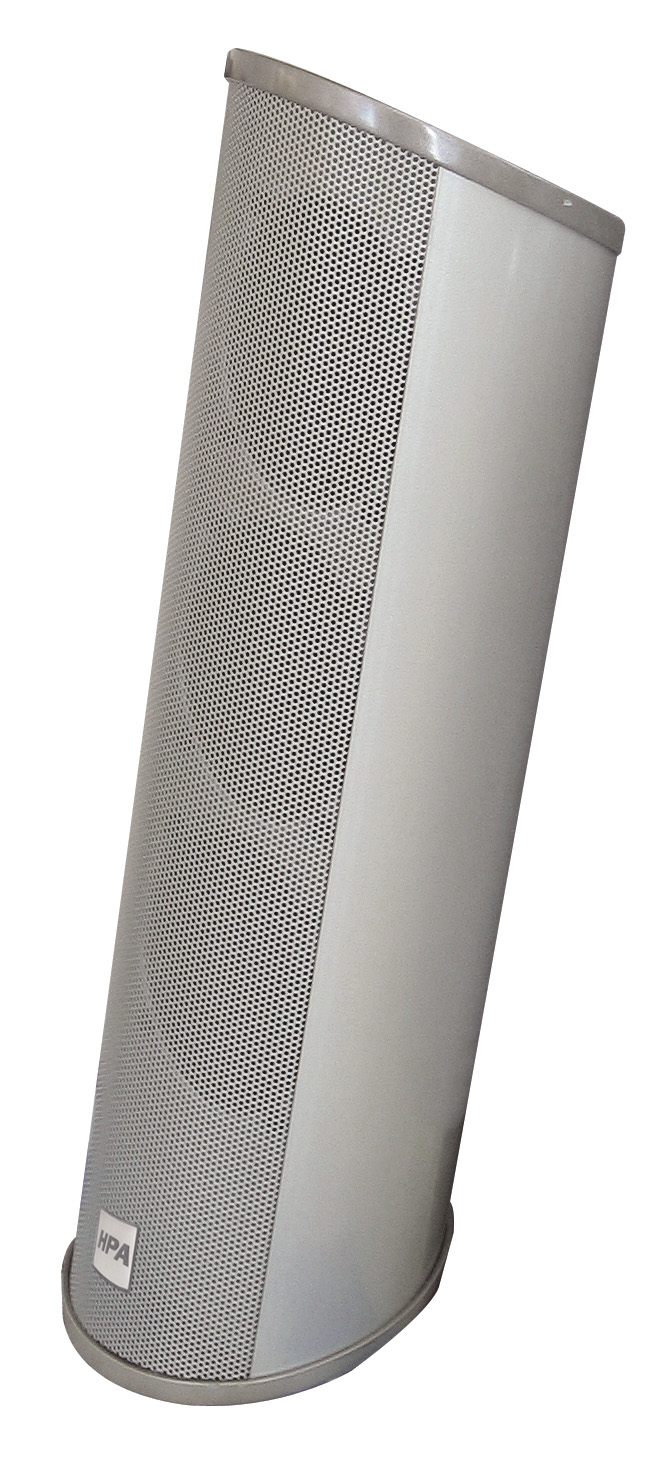

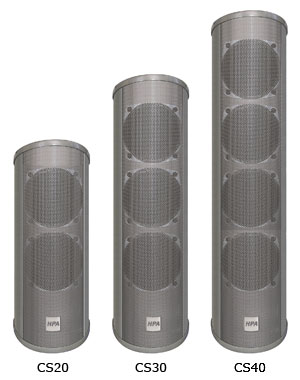

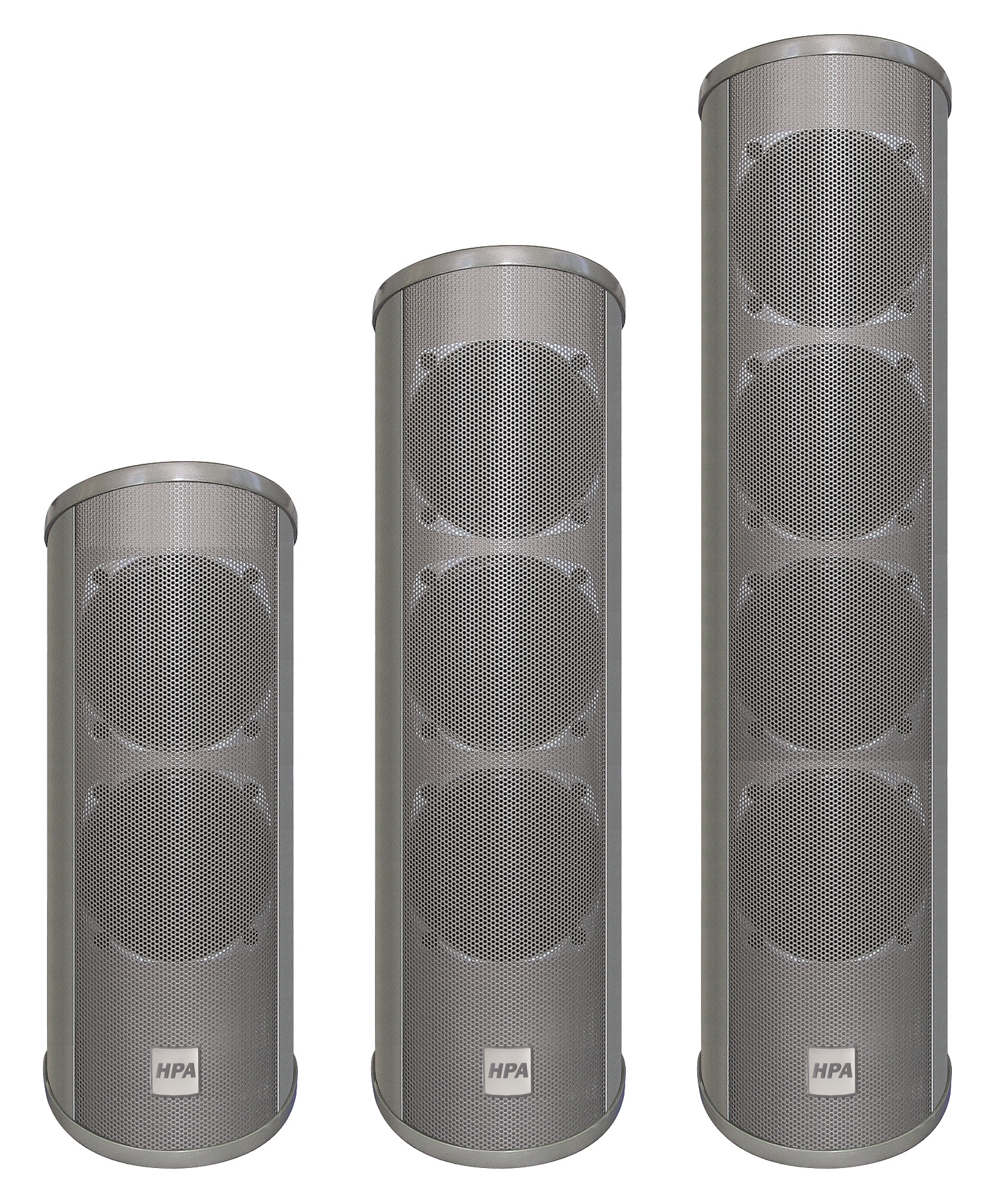

CS 10/20/30/40
Column Speaker (Indoor) |
|
|
- Indoor aluminium design
- Morden softline design, excellent sound
- Perfect frequency response and high efficiency for PA and FGM applications
- Included wall mounting swivel brackets
- Optimized for most environments
- Euro connector
|
| Specifications |
CS10 |
CS20 |
CS30 |
CS40 |
| Speaker Unit |
3.5” Paper Cone |
| Rated input power (RMS) |
10 Watts |
20 Watts |
30 Watts |
40 Watts |
| Impedance |
1 kΩ / 2 kΩ |
500 Ω / 1 kΩ |
330 Ω / 660 Ω |
250 Ω / 500 Ω |
| SPL (1Watt/1m) |
88dB |
91dB |
94dB |
97dB |
| Frequency Response |
200Hz - 20kHz |
| Weight (Net) |
1.5 kg |
2.5 kg |
3.5 kg |
4.5kg |
| Dimensions (D x H) |
Φ123 x 230 mm |
Φ123 x 300 mm |
Φ123 x 425 mm |
Φ123 x 550 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
