SY-A4120
4-Channel Public Address Amplifier |
|
|
- Controls

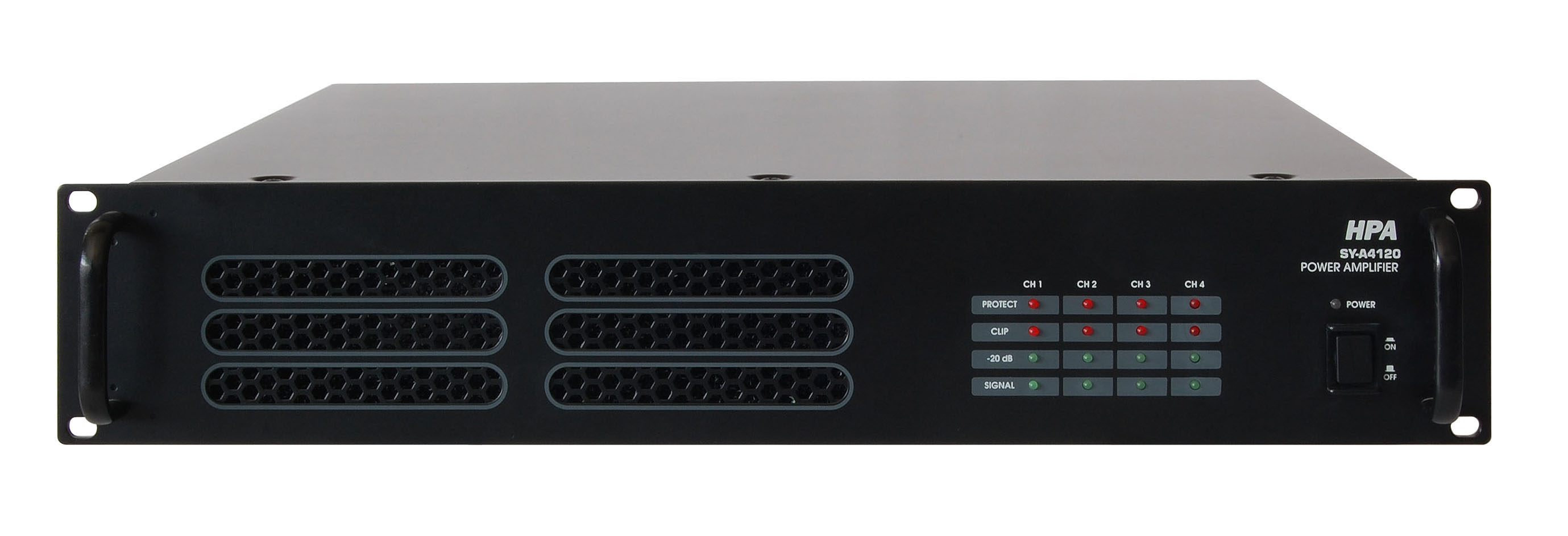

- Front: Power On/Off switch

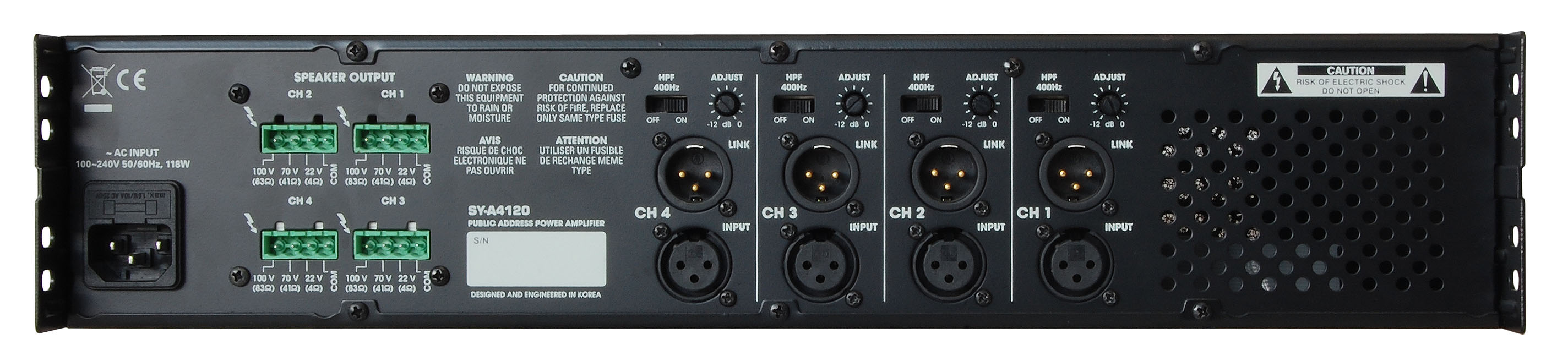

- Rear: HPF filter for each channel, Volume Control on each channel.
- Connectors
- Input: XLR female jack for Balanced Input & XLR male jack for Link on each channel.
- Output: Euro 4 pin connector on each channel (COM,4 ohm,70V,100V)
- Indicator: Power On and Signal,Peak,Protection for each channel.
|
| Specifications |
SY-A4120 |
| Rate Power Output (1kHz,THD5%) |
120W x 4 |
| Output Level/Impedance |
100V(83Ω), 70V(42Ω),
21.9V(4Ω) |
| Input Sensitivity |
0.775V |
| Input Impedance |
10 kohms Balanced |
| Frequency Response |
50Hz - 18kHz |
| T.H.D (1kHz, 1/3Rated Power) |
0.01% |
| Signal to Noise Ratio |
90dB |
| Power Source |
AC100 -240V, 50/60 Hz |
| Weight (Net) |
14.8 kg |
| Dimensions (W x H x D) |
483 x 88 x 433 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
