SY-P 1002
Pre-Amplifer |
|
|

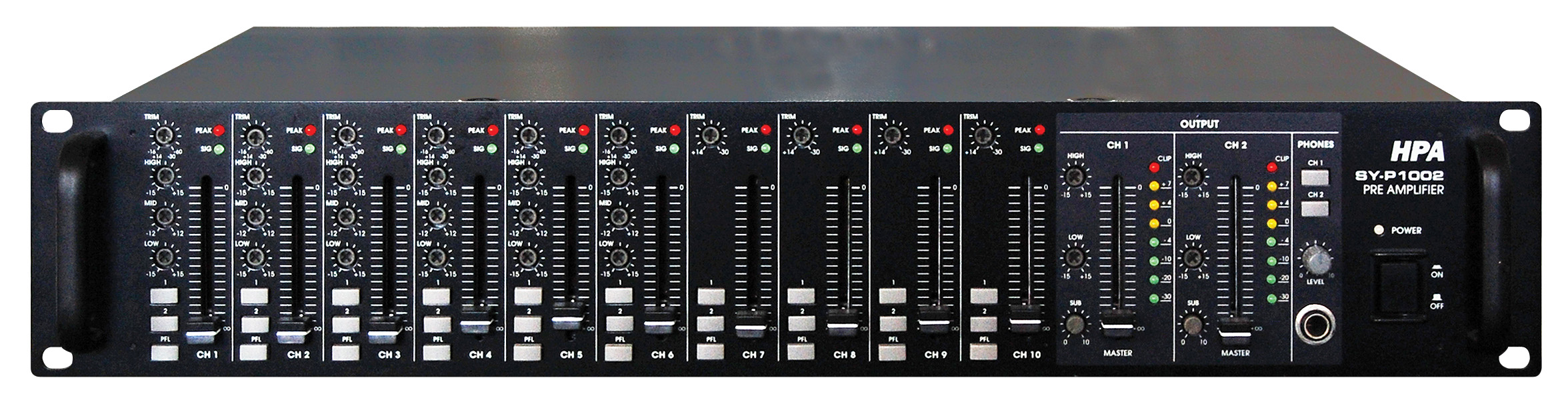

- Controls
- 6 balanced Mic/Line, 4 unbalanced line input with Trim pot, 3-band EQ & level control
- 1 remote Mic input with level control and 1 priority input
- Built in pre-announcement Chime & Emergency siren
- Selectable 2 Balanced Line output, 2 Unbalanced sub output & 2 Line insert with 2-band EQ
- PFL, AFL by 0.5 watts headphone output with level control
- Phantom power and ducking control for input channel 1/2

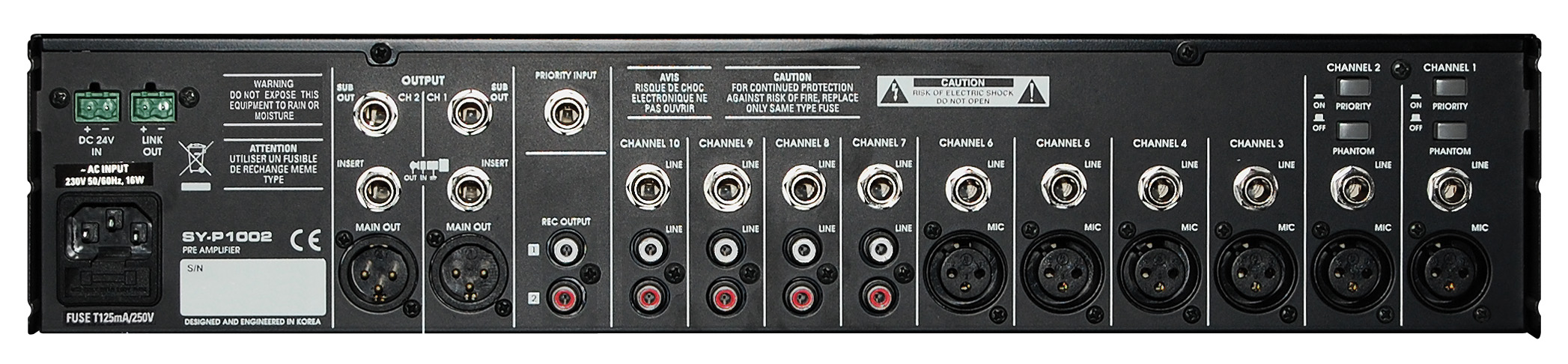

- Connectors
- XLR & balanced 1/4” phone jack for input channel 1-6
- RCA jack & unbalanced 1/4” phone jack for input channel 7-10
- 1/4” phone jack for insert, sub output, headphone output & priority input
- Euro terminal for Remote Mic input and RCA jack for record output
- DC +24V power input, link output & AC inlet
- Indicators: Power, Peak & Signal for each input channels & output levell
|
| Specifications |
SY-P1002 |
| Maximum Output Level |
1 Volt |
| Frequency Response (-1dB) |
20Hz - 20kHz |
| T.H.D |
< 0.01% |
| Closstalk |
> 70 dB |
| Equalization |
Input |
12 kHz ± 15 dB / Mid : 2.5 kHz ± 15 dB / Low : 80 Hz ± 15 dB |
| Output |
High : 10 kHz ± 15 dB / Low : 100 Hz ± 15 dB |
| Hum & Noise |
EIN |
> 127 dB |
| Residual |
> 100 dB |
| Power Source |
AC 100 -240V, 50/60 Hz. DC 24V |
| Weight (Net) |
9 kg |
| Dimensions (W x H x D) |
483 x 88 x 320 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
