SY-A 120/240/360
Public Address Power Amplifier |
|
|
- Controls

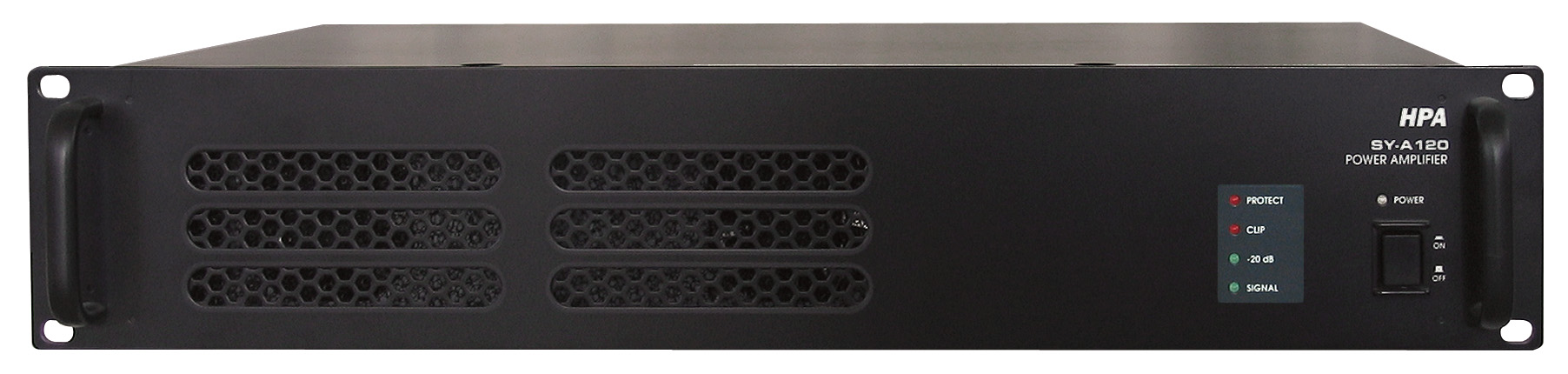

- Front: Power On/Off switch

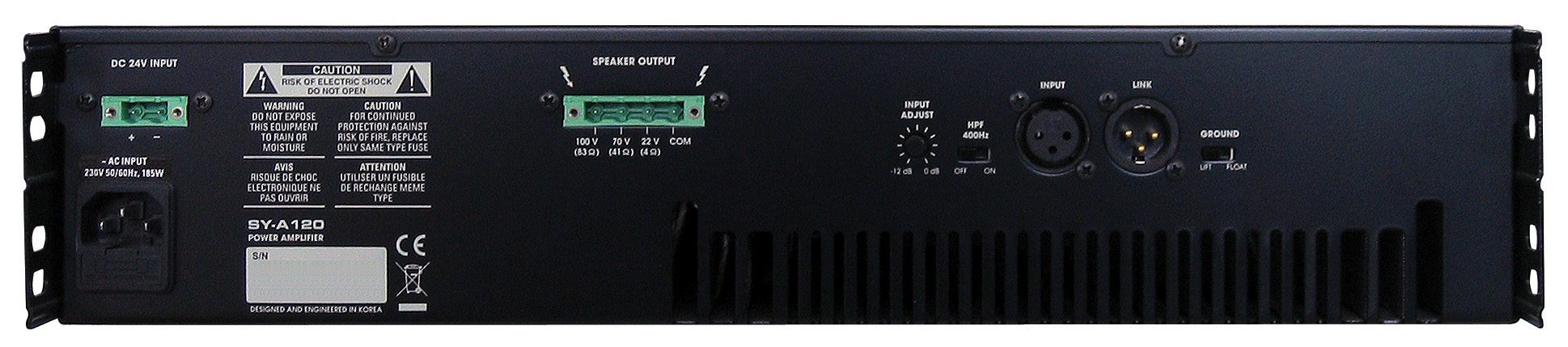

- Rear: Volume control, HPF On/Off switch and Ground/Lift switch Connectors
- Input: XLR female jack electronically balanced & XLR male for input link
- Output: Euro connector
- Indicator: Signal, -20dB, Clip, Protect & Power On
- Protection: Output current limiting, thermal protection & fuse
- Cooling: Variable speed fan forced cooling
|
| Specifications |
SY-A120 |
SY-A240 |
SY-A360 |
| Rate Power Output (1kHz,THD1%) |
120 Watt |
240 Watt |
360 Watt |
| Output Level/Impedance |
100V(83Ω), 70V(42Ω),
21.9V(4Ω) |
100V(42Ω), 70V(21Ω),
31V(4Ω) |
100V (28Ω), 70V (14Ω) ,
38V (4 Ω) |
| Input Sensitivity |
0.775 Volt (Adjustable) |
| Input Impedance |
10 kohms Balanced |
| Frequency Response (±3dB) |
50Hz - 15kHz |
| T.H.D (1kHz, Rated Power) |
Less than 1% |
| Signal to Noise Ratio |
80dB |
| Power Source |
AC100 -240V, 50/60 Hz. DC24V |
| Weight (Net) |
13 kg |
17 kg |
20 kg |
| Dimensions (W x H x D) |
483 x 88 x 309 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
