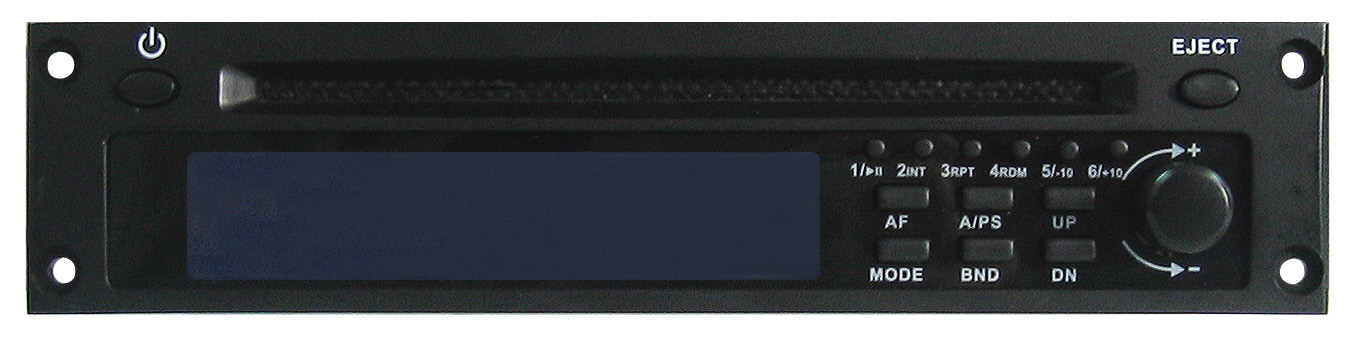

TCM3
Tuner / CD(MP3) Module |
|
|
- Controls
- Function Selector (Bass, Treble & Volume control, Sound effect select & Auto seek search)
- Mode & Band select, Mute toggle and Up/Down for CD track and Tuner frequency
- Intro, Repeat and Random play for CD & MP3
- MP3 directory serch & 6 preset station for tuner
- Selectible Frequency Band for US and Europe
- Volume control & Mute switch
- CD eject switch
- Connectors
- 2.54mm pitch pin connector
- Line output
- Music on hold output
- DC power input
- Indicator: LCD with blue back light for whole status of unit
- Accessory: Antenna cable
|
| Specifications |
TCM3 |
| Tuner section |
FM |
AM |
| Frequency Range |
87.5 MHz ~ 108 MHz |
522 kHz ~ 1620 kHz |
| Channel Step |
50kHz |
User selectible for US and EUROPE |
| Intermediate Frequency |
10.7MHz |
450kHz |
| Sensitivity |
2uV @ S/N 30dB |
20 uV @ S/N 20dB |
| Stereo Seperation |
30dB |
| Signal to Noise Ratio |
60dB |
50dB |
| CD/MP3 Player section |
Frequency Response |
20Hz - 20kHz |
| Channel Seperation |
50 dB |
| Signal to Noise Ratio |
60 dB |
| Output Level |
1 Volt |
| Impedance |
> 10kΩ |
| General |
Power Source |
DC 13.2 Volt, 1A max |
| Weight (Net) |
1 kg |
| Dimensions (WxHxD) |
180 x 20 x 160 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
