TA 30/50
Public Address Mixer Amplifier |
|
|
- Controls

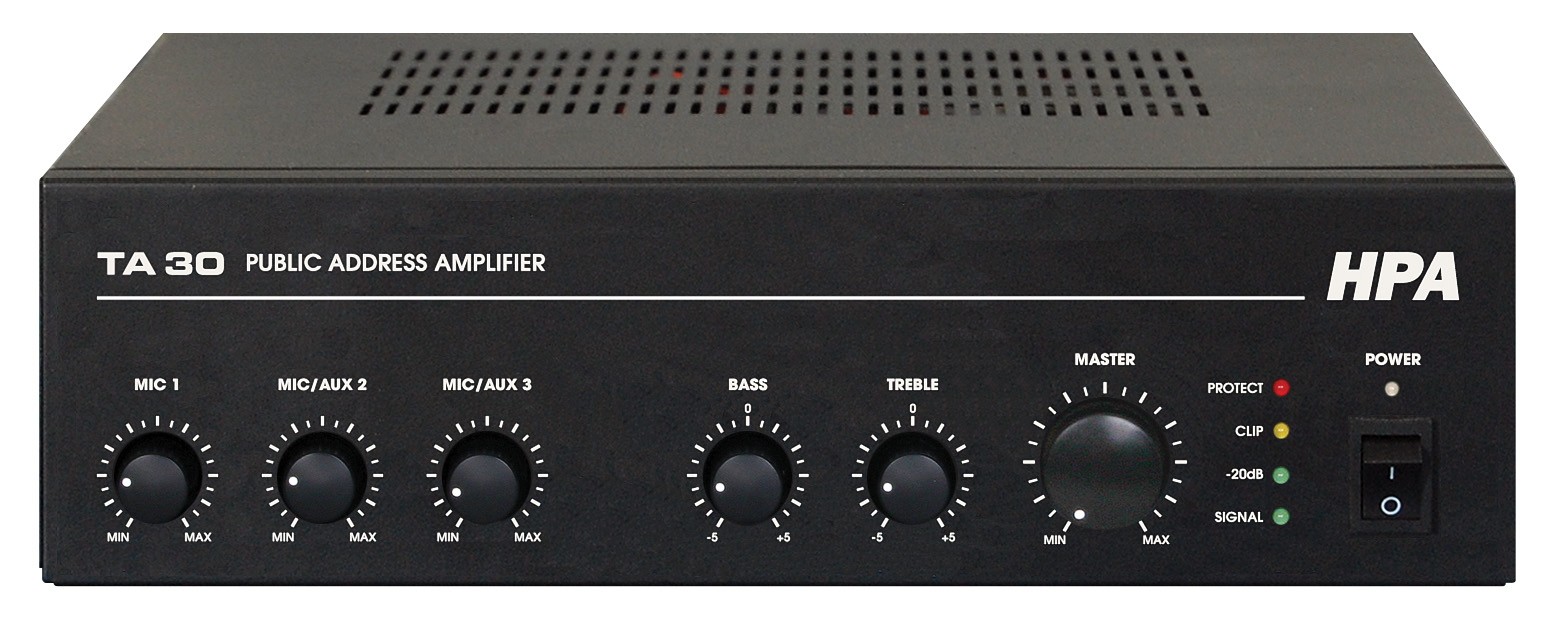

- Front: 3 channel volume control and tone control

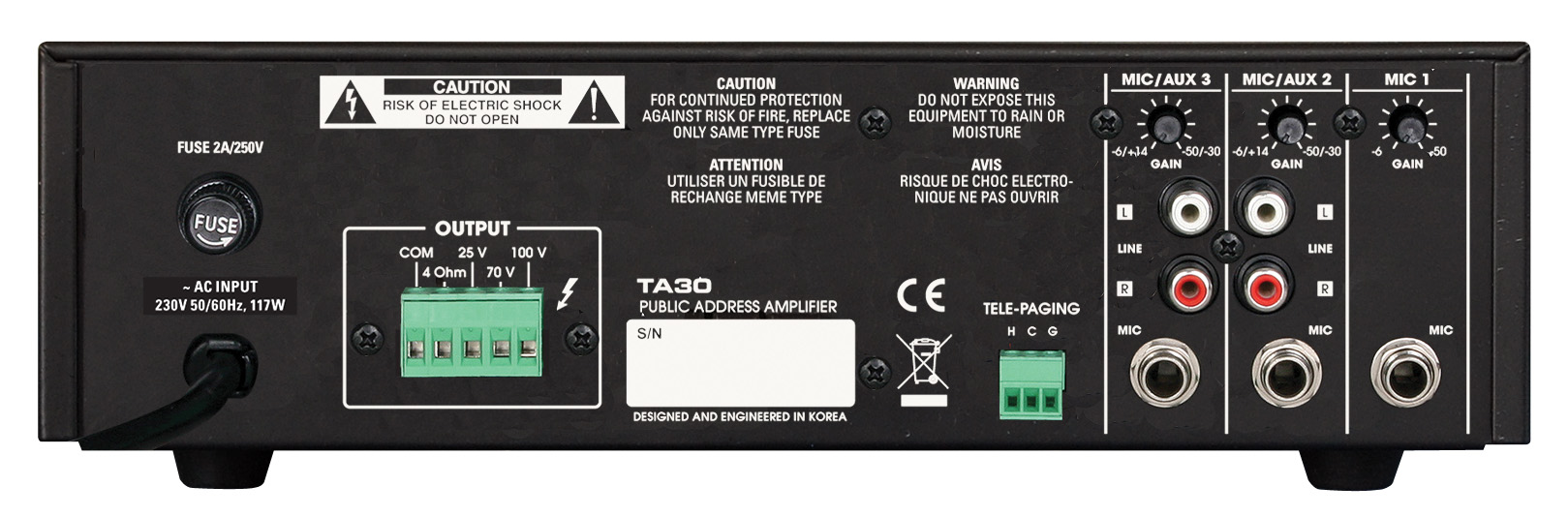

- Rear: Trim Pot control for 3 input channel
- Connectors
- 1/4” phone jack electronically balanced for channel 1-3 input
- Dual RCA phono jack for channel 2/3 input
- Euro jack for Tele-paging input
- Euro jack for speaker output
- Indicator: Power, Signal, -20 dB, Clip and Protect
- Protection: Output current limiting, thermal protection & DC offset protection
- Cooling: Convention cooling
|
| Specifications |
TA30 |
TA50 |
| Rated Power (RMS) |
30 Watt |
50 Watt |
Input Sensitivity
/Impedance |
MIC 1-3 |
-50 dB to -6 dB Variale / 20 kΩ Balanced |
| AUX 2-3 |
-30 dB to +14 dB Variale / 47 kΩ Unbalanced |
| Tele-paging |
0 dB / 600 Ω Balanced |
| Output Level/Impedance |
100 V (333 Ω), 70 V (163 Ω),
25 V (21 Ω), 11 V (4 Ω) |
100 V (166 Ω), 70 V (83 Ω),
25 V (10 Ω), 15.5 V (4 Ω) |
| Frequency Response (-3 dB) |
50 Hz - 15 kHz |
| T.H.D (1 kHz, Rated Power) |
< 1 % |
| Signal to Noise Ratio |
> 100 dB |
| Power Source |
AC 100~240 V, 50/60 Hz |
| Weight (Net) |
5.2 kg |
6 kg |
| Dimensions (W x H x D) |
270 x 76 x 230 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
