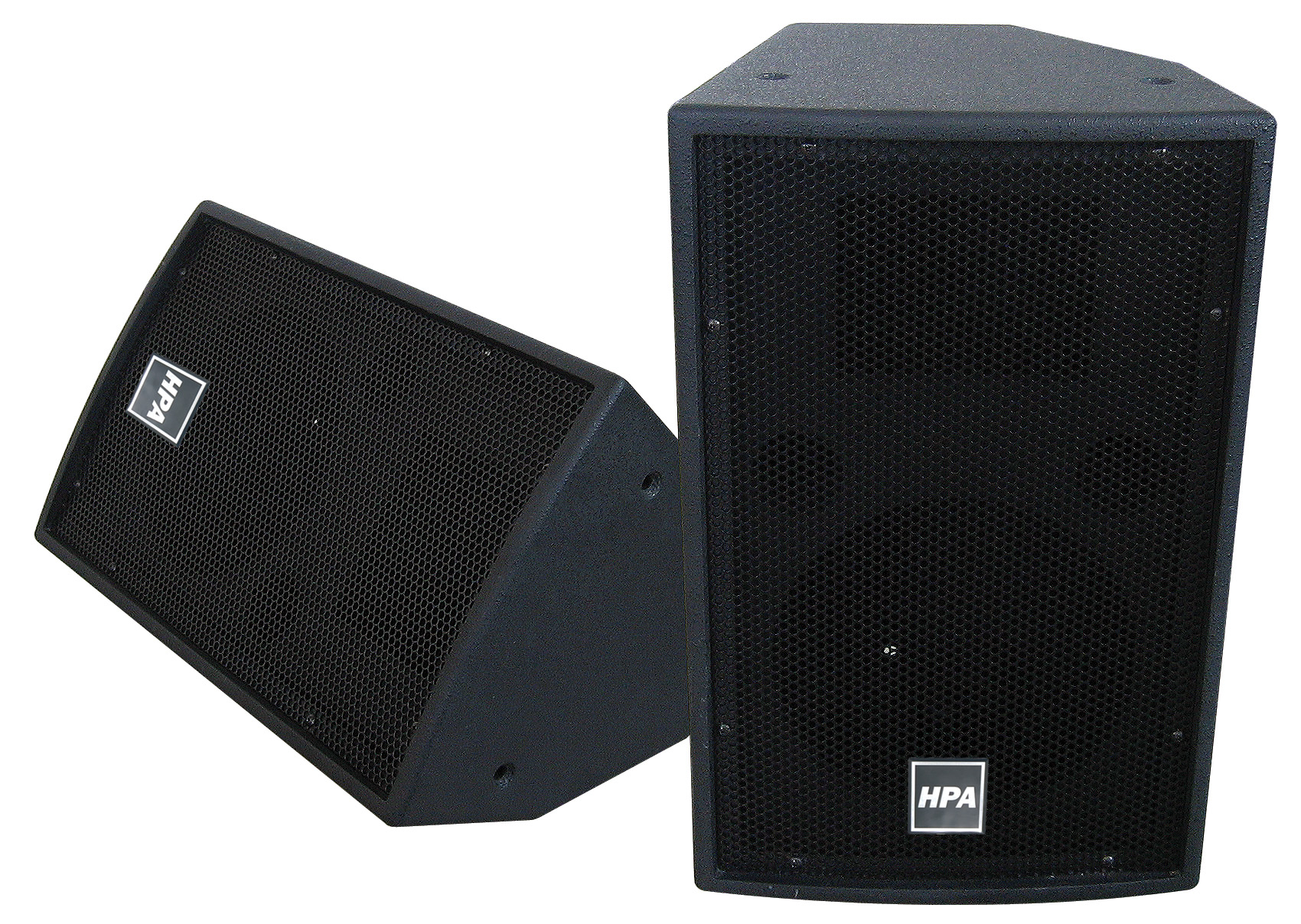

SM 82/102

Sound Reinforcement 2-way Speaker System

  • Heavy duty spray-coating dual angled cabinet for stage and monitor use
  • Perfect frequency response and high efficiency drivers
  • Overloaded protection
  • Two connectors to chain or add speaker
  • Stand pole socket for flexibility of use
  • Arrayable 6 points fly points
Specifications SM82 SM102
Enclosure 2-way bass reflex
Woofer 8” cone 10” cone
Mid range - 6 1/2” cone
Tweeter 25mm titanium dome
Rated input power 150 Watts RMS/400 Watts Peak 200 Watts RMS/800 Watts Peak
Impedance 8 Ω
SPL (1watt/1m) 96 dB 98 dB
Crossover Frequency 2.5 kHz
Frequency Response 45Hz - 18kHz 38Hz - 18kHz
Weight (Net) 5.6 kg 7.2 kg
Dimensions (W x H x D) 300 X 480 X 246 mm 336 X 520 X 284 mm
*Specifications and design subject to change without notice for improvements.
