PM 8300S/8500S

12 Channel Stereo Powered Mixer

  • Download Hi-resolution Photos

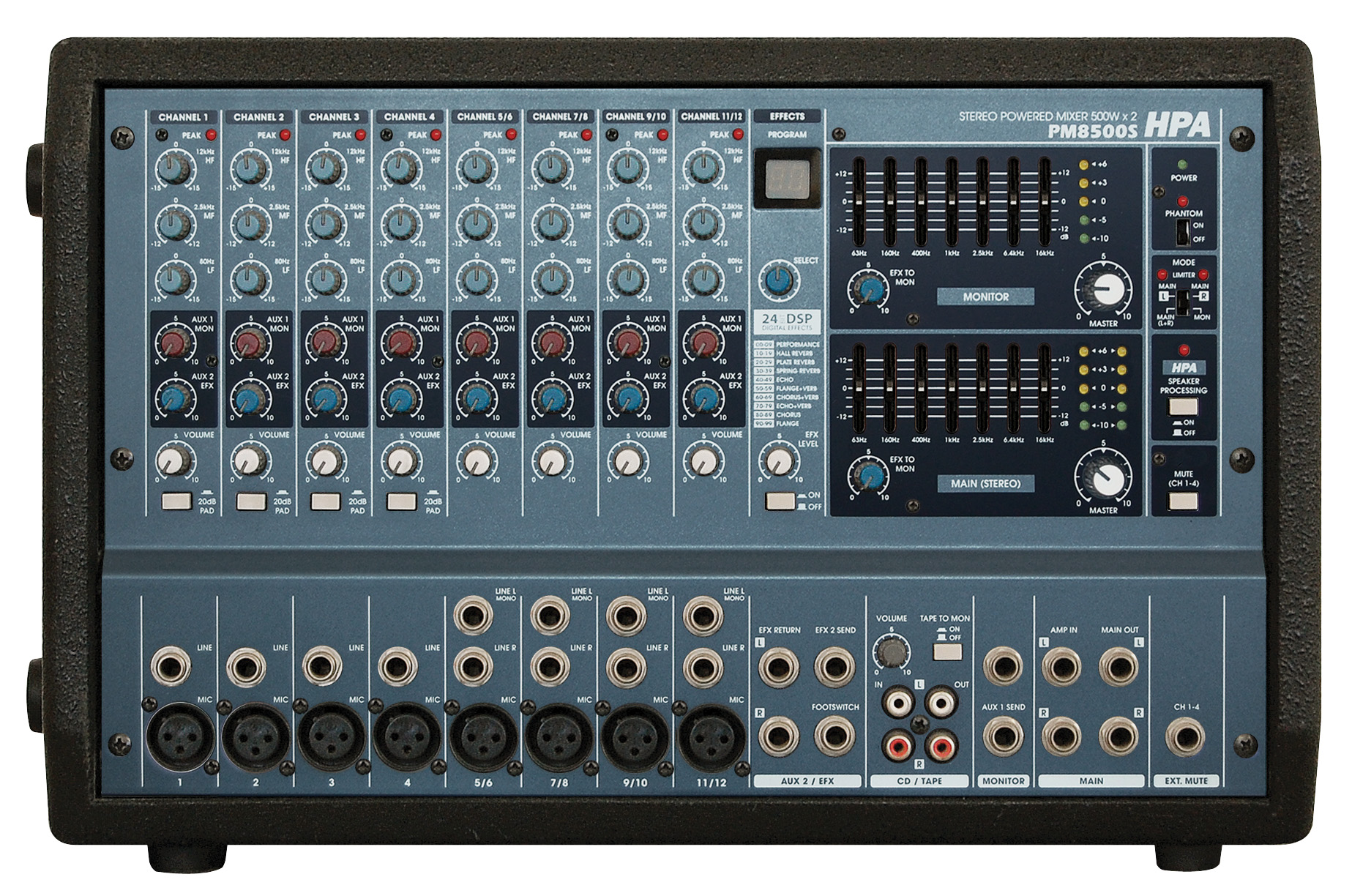

    (Front | Rear)
  • Controls
    - 4 mono, 4 stereo channels input & stereo output box type
    - 300 W x2 @ 4 ohm (PM8300S), 500 W x2 @ 4 ohm (PM8500S)
    - PAD with Peak LED, 3-band EQ, 1 AUX, 1 EFX and volume for each input
    - Main/Monitor & MainL/R mode selector, Channel mute, HPA speaker processing On/Off & Phantom power
    - 24 bit DSP Effect & 7-band graphic EQ for master output
    - Tape input / output, Footswitch & External Mute
  • Input Connectors
    - XLR & 1/4” phone jack balanced for channel
    - 1/4” phone jack for AUX & phono jack for Tape
  • Output Connectors
    - 1/4” phone jack for Main, Mon & AUX
    - Phono jack for Tape
  • Indicator: Level meter for Main & Mon, Phantom power, limiter, channel mute & input peak
  • 19” standard rack mountable & featuring Kickback design
Specifications PM8300S PM8500S
Rated Power
@ THD 1%
200 W x2 @ 8 Ω 350 W x2 @ 8 Ω
300 W x2 @ 4 Ω 500 W x2 @ 4 Ω
Frequency Response (-1 dB) 20 Hz - 20 kHz
T.H.D < 0.5%
Crosstalk > 70 dB
Hum & Noise EIN > 127 dB
Residual > 100 dB
Main, Monitor, Effect output > 80 dB
Equalization Input channel 12kHz ±15dB / Mid:2.5kHz ±12dB / Low:80Hz ±15dB
Master graphic 63Hz,160Hz,400Hz,1kHz,2.5kHz,6.4kHz,16kHz ±12dB
DSP Effect 24 bit / 100 presets
Power Source AC 100~240 V, 50/60 Hz
Weight (Net) 17 kg 18 kg
Dimensions (W x H x D) 410 x 260 x 320 mm
*Specifications and design subject to change without notice for improvements.
