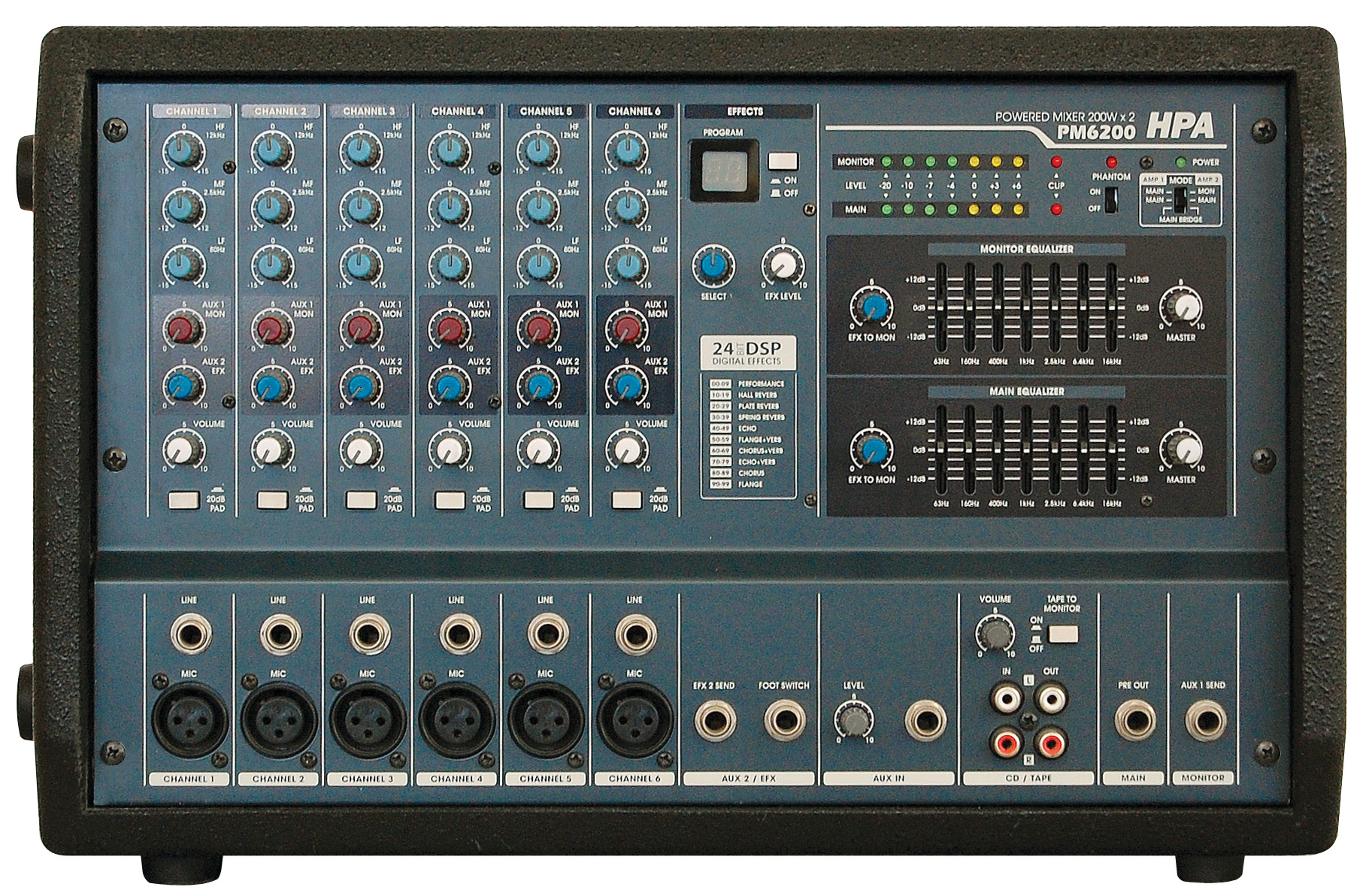

PM 6200

6 Channel Powered Mixer

  • Controls
    - 6 mono channels input 2, Channels output box type
    - 200 W x2 @ 4 ohm / 400W @ 8 ohm bridged
    - PAD, 3-band EQ, 1 AUX, 1 EFX, volume for each input
    - Main/Monitor, Main L/R, Bridged mode selector & Phantom power
    - 24-bit DSP Effect, 7-band graphic EQ for master output
    - Tape input & output & Footswitch
  • Input Connectors
    - XLR & 1/4” phone jack balanced for channel
    - 1/4” phone jack for AUX & phono jack for Tape

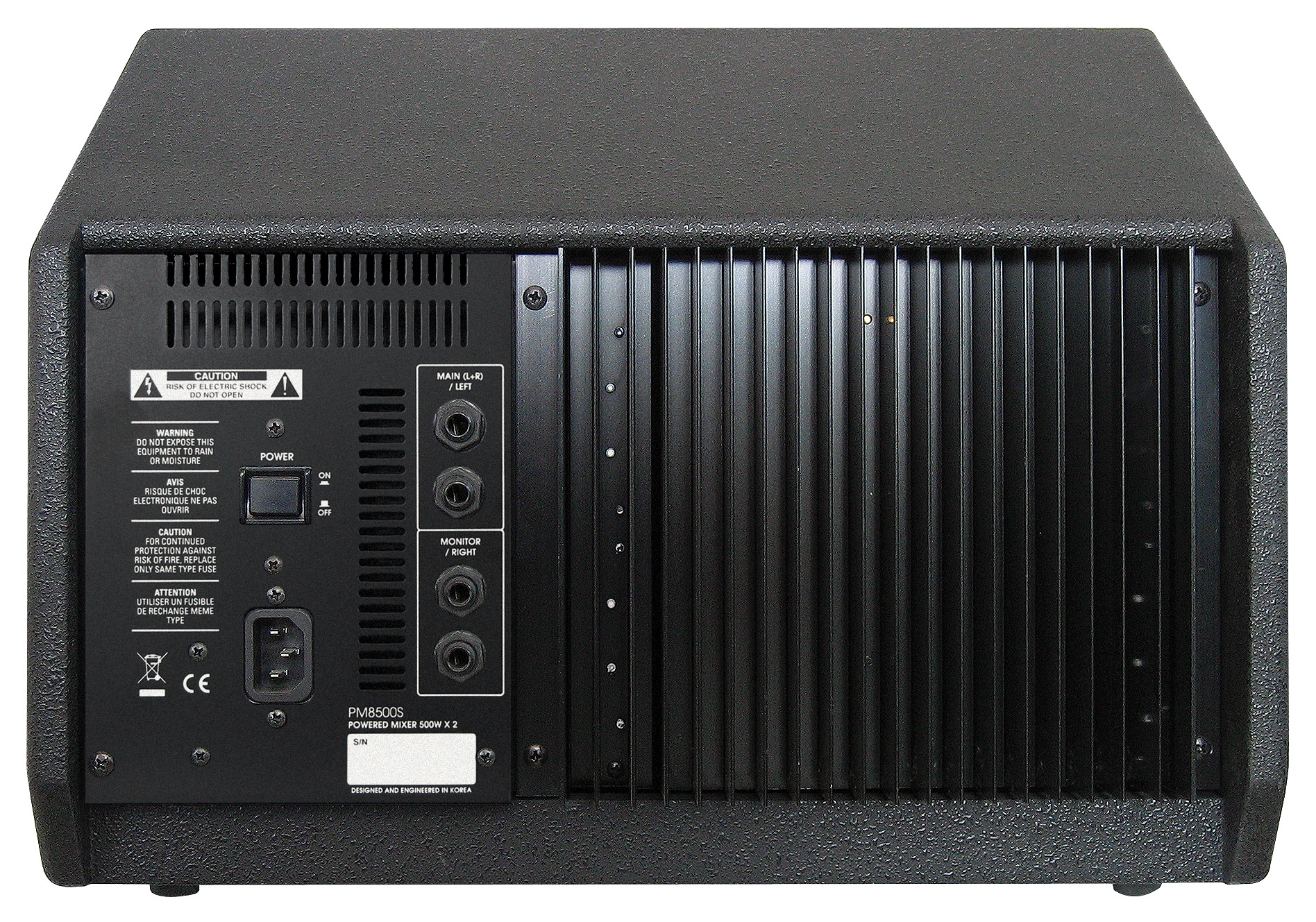

  • Output Connectors
    - 1/4” phone jack for Main, Mon, AUX & EFX
    - Phono jack for Tape
  • Indicator: Level meter for Main & Mon, Protection & Phantom power

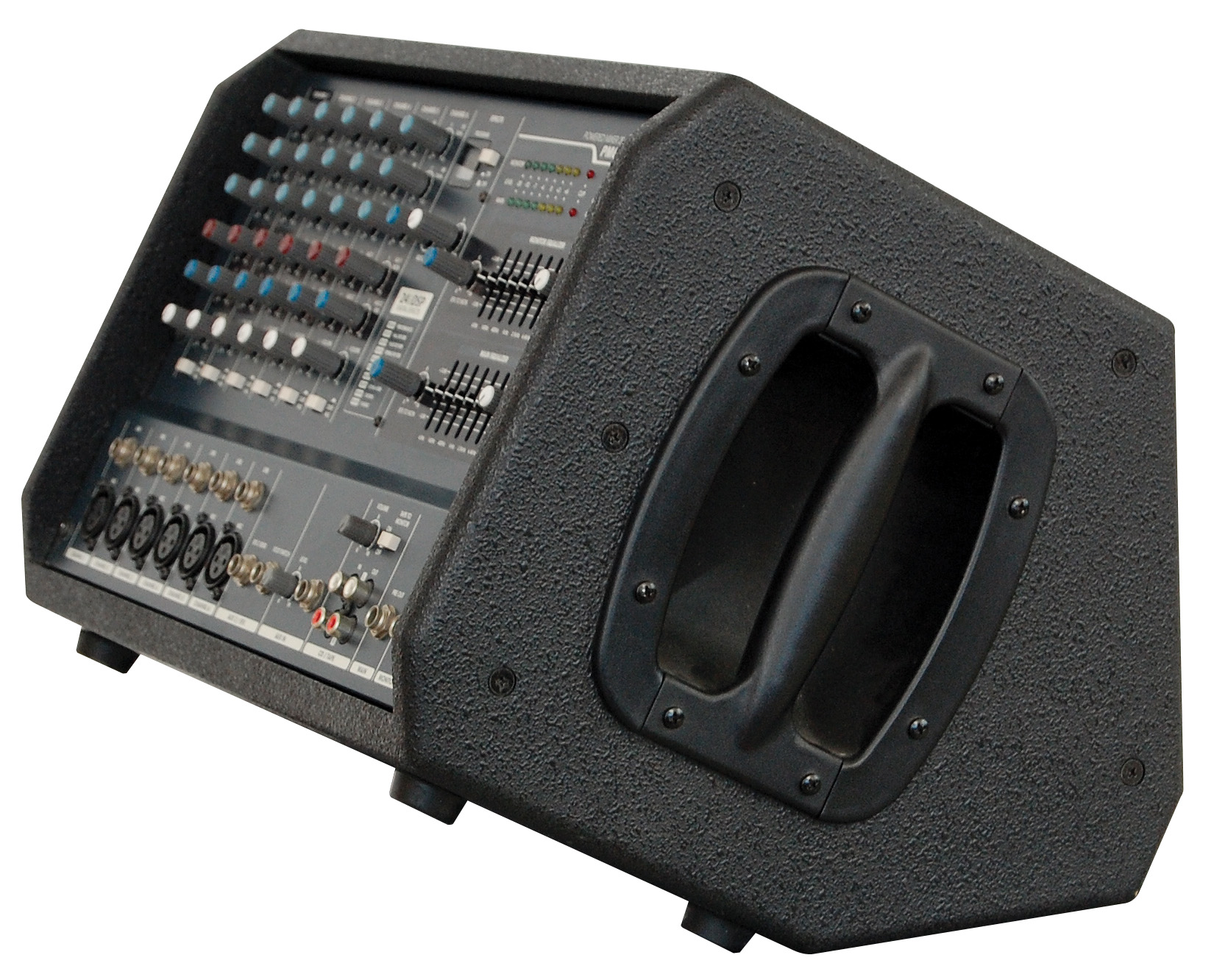

  • 19” standard rack mountable & featuring Kickback design
Specifications PM6200
Rated Power
@ THD 1%
130W x2 @ 8Ω
200W X2 @ 4Ω
400W @ 8Ω bridged
Frequency Response (-1 dB) 20 Hz - 20 kHz
T.H.D < 0.5%
Crosstalk > 70 dB
Hum & Noise EIN > 127 dB
Residual > 100 dB
Main, Monitor, Effect output > 80 dB
Equalization Input channel 12kHz ±15dB, Mid:2.5kHz ±12dB, Low:80Hz ±15dB
Master graphic 63Hz,160Hz,400Hz,1kHz,2.5kHz,6.4kHz,16kHz ±12dB
DSP Effect 24 bit / 100 presets
Power Source AC 100~240 V, 50/60 Hz
Weight (Net) 16 kg
Dimensions (W x H x D) 410 x 260 x 320 mm
*Specifications and design subject to change without notice for improvements.
