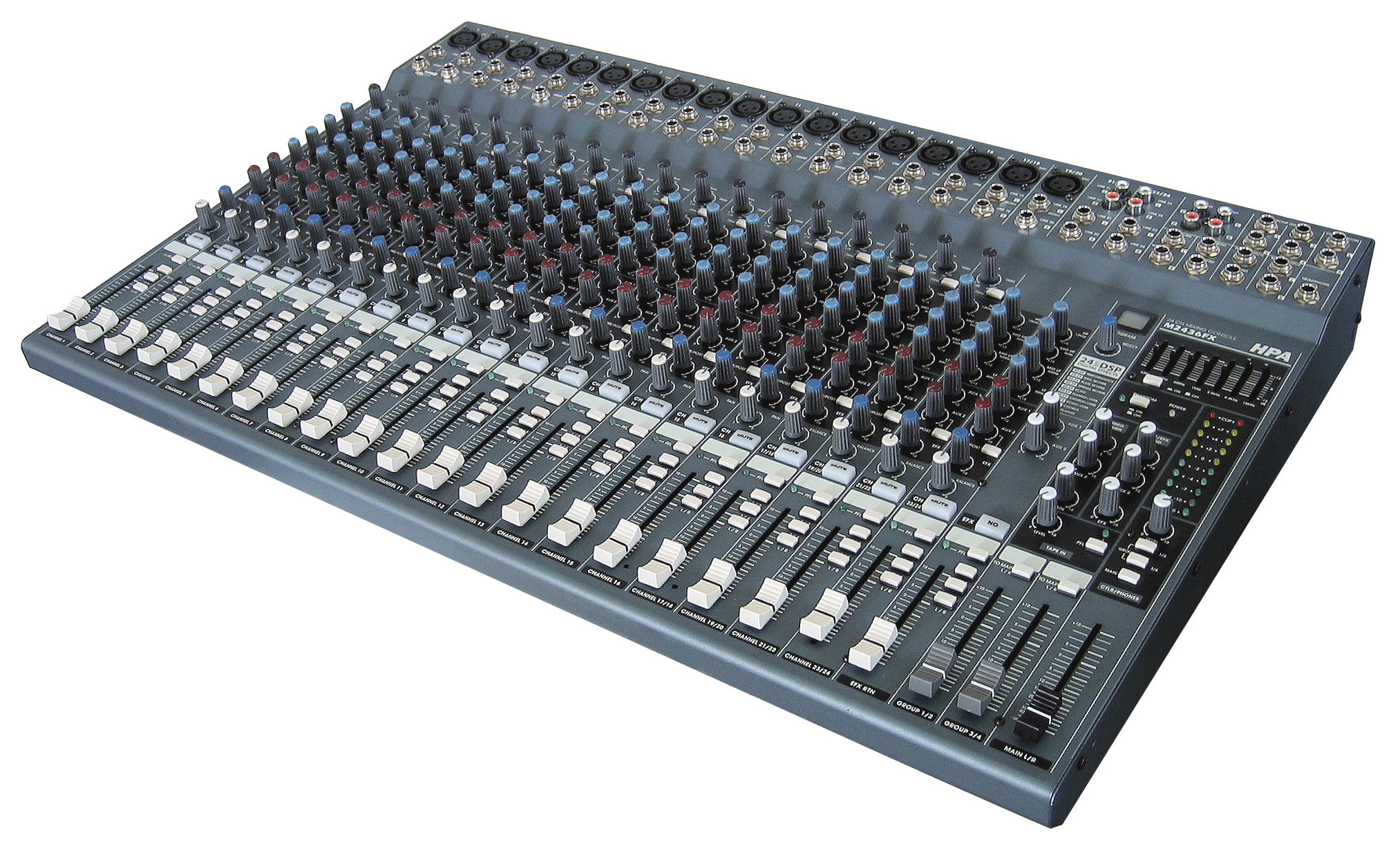

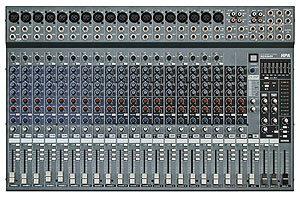

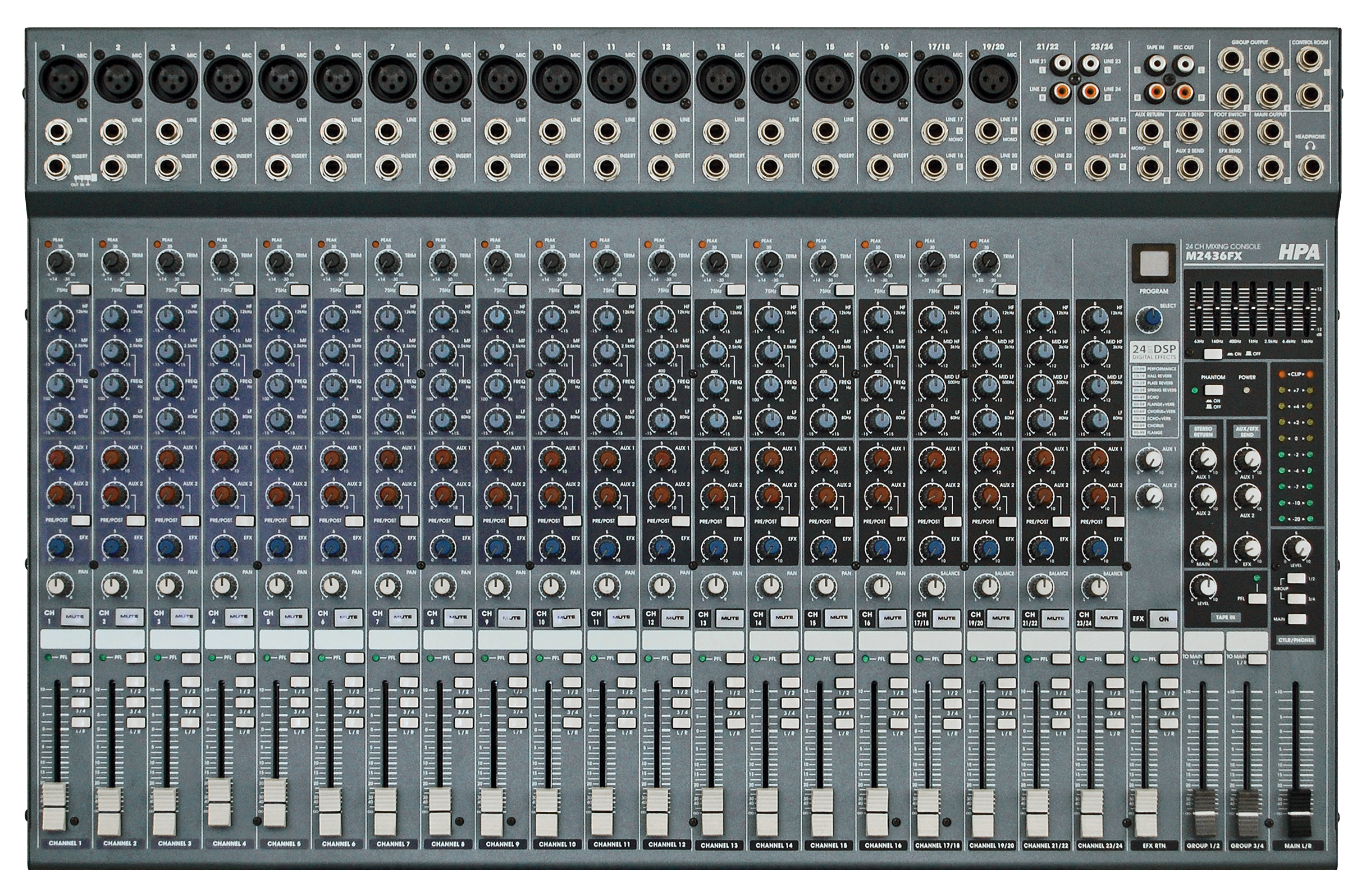

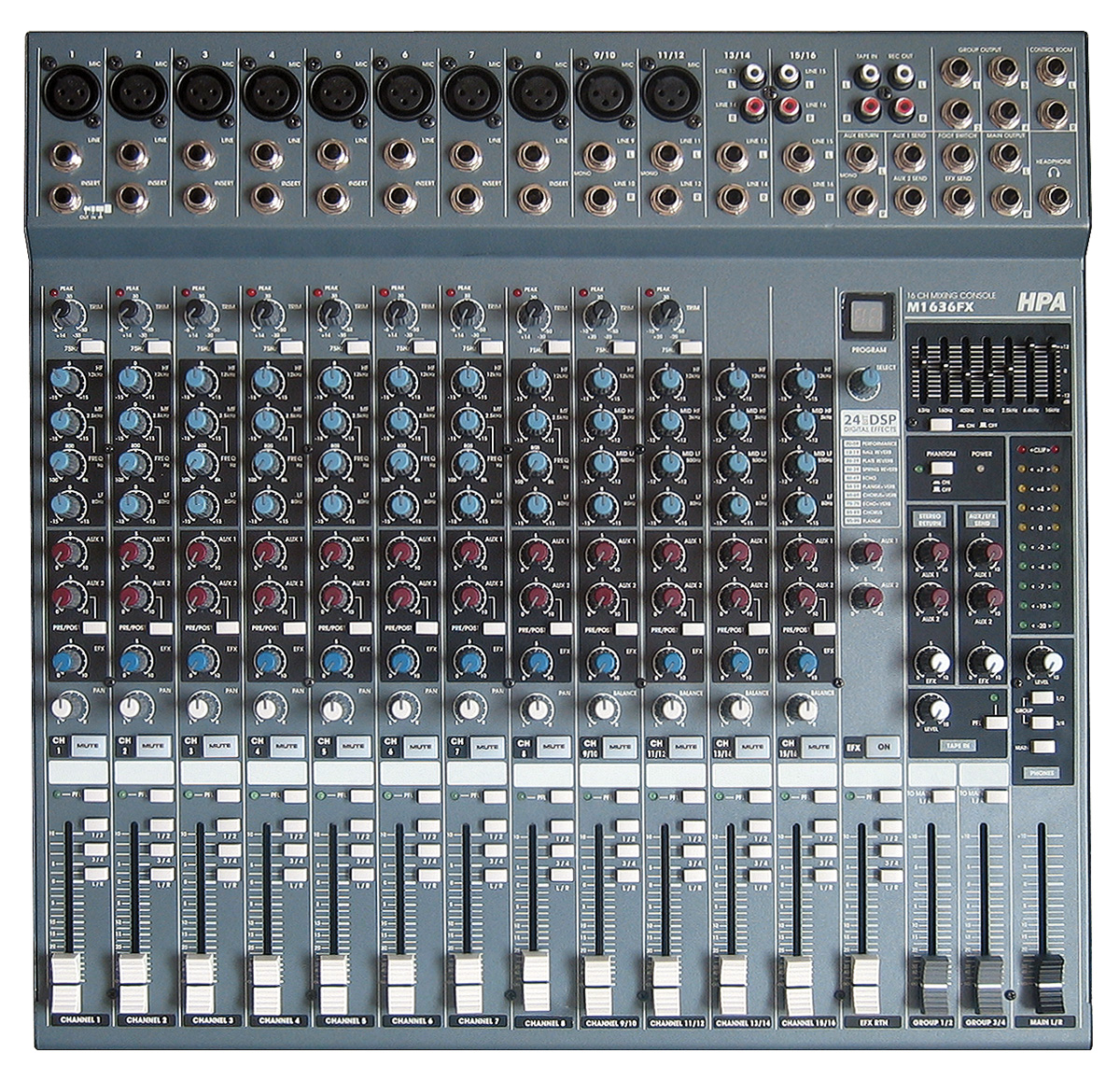

M 1636FX/2436FX/1636FX-USB/2436FX-USB
16/24 Channel 6-Bus Mixing Console |
|
|
- Controls
- 8 mono (M1636FX)/16 mono (M2436FX) & 4 stereo channels Input
- Stereo Main, Group 1/2 & ALT 3/4 output
- Trim with Peak LED, HPF, 3-band sweepable EQ, AUX 1/2 with Pre/Post switch, 1 EFX, PAN, Mute, PFL & Group switch for mono input
- Trim with Peak LED, HPF (M1636FX: CH9-12, M2436FX: CH17-20), 4-band EQ, AUX 1/2 with Pre/Post switch, 1 EFX, BAL, Mute, PFL, Group & L/R switch for stereo input
- 3 Stereo Return & Tape with PFL
- 7-band master EQ with On/OFF switch
- HP/Control Room with Group & Main switch
- Phantom Power & Footswitch
- Main L/R, Group 1/2 & 3/4 with To Main switch
- AUX 1, 2 Send, On, PFL, To Group & Main switch
- 24-bit DSP effect 100 presets, EFX on/off & EFX level
- Input Connectors
- XLR and 1/4” phone jack balanced & 1/4” phone jack for Insert on mono input
- XLR balanced & 1/4”phone jack for stereo (M1636FX: CH9-12, M2436FX: CH17-20)
- 1/4” phone & phono jack for stereo input(M1636FX: CH13-16, M2436FX: CH21-24)
- 1/4”phone jack for AUX return & phono jack for Tape
- Output Connectors
- XLR & 1/4”phone jack for Main, 1/4”phone jack for Group, AUX, EFX, Contorl Room, Headphone & Footswitch
- Phono jack for Tape
- Indicator : Peak for each mono channel, PFL, level meter, Mute for each input, PFL for EFX, Phantom power & DSP program
- USB Digital Audio In/Out (USB version)
- 19” standard rack mountable (M1636FX/1636FX-USB)
|
| Specifications |
M1636FX |
M2436FX |
M1636FX-USB |
M2436FX-USB |
| Maximum Output Level |
24 dBm |
| Frequency Response (-1 dB) |
20 Hz - 20 kHz |
| T.H.D |
< 0.01 % |
| Crosstalk |
> 70 dB |
| Hum & Noise |
EIN |
> 127 dB |
| Residual |
> 100 dB |
| Main, Group 1~4,AUX, EFX output |
> 80 dB |
| Equalization |
Mono Input |
High:12kHz ±15dB, Mid:100Hz-8kHz ±15dB, Low:80Hz ±15dB |
| Stereo Input |
12 kHz ±15 dB, Mid-High:3 kHz ±15 dB, Mid-Low:800 Hz ±15 dB, Low:80 Hz ±15 dB |
| DSP Effect |
24 bit / 100 presets |
| Power Source |
N/A |
USB Audio 1.1
44.1/48KHz 16bit, USB B type |
| Power Source |
AC 100~240 V, 50/60 Hz |
| Weight (Net) |
5.6 kg |
8.8 kg |
5.6 kg |
8.8 kg |
| Dimensions (W x H x D) |
436 x 420 x 65 mm |
652 x 420 x 65 mm |
436 x 420 x 65 mm |
652 x 420 x 65 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
