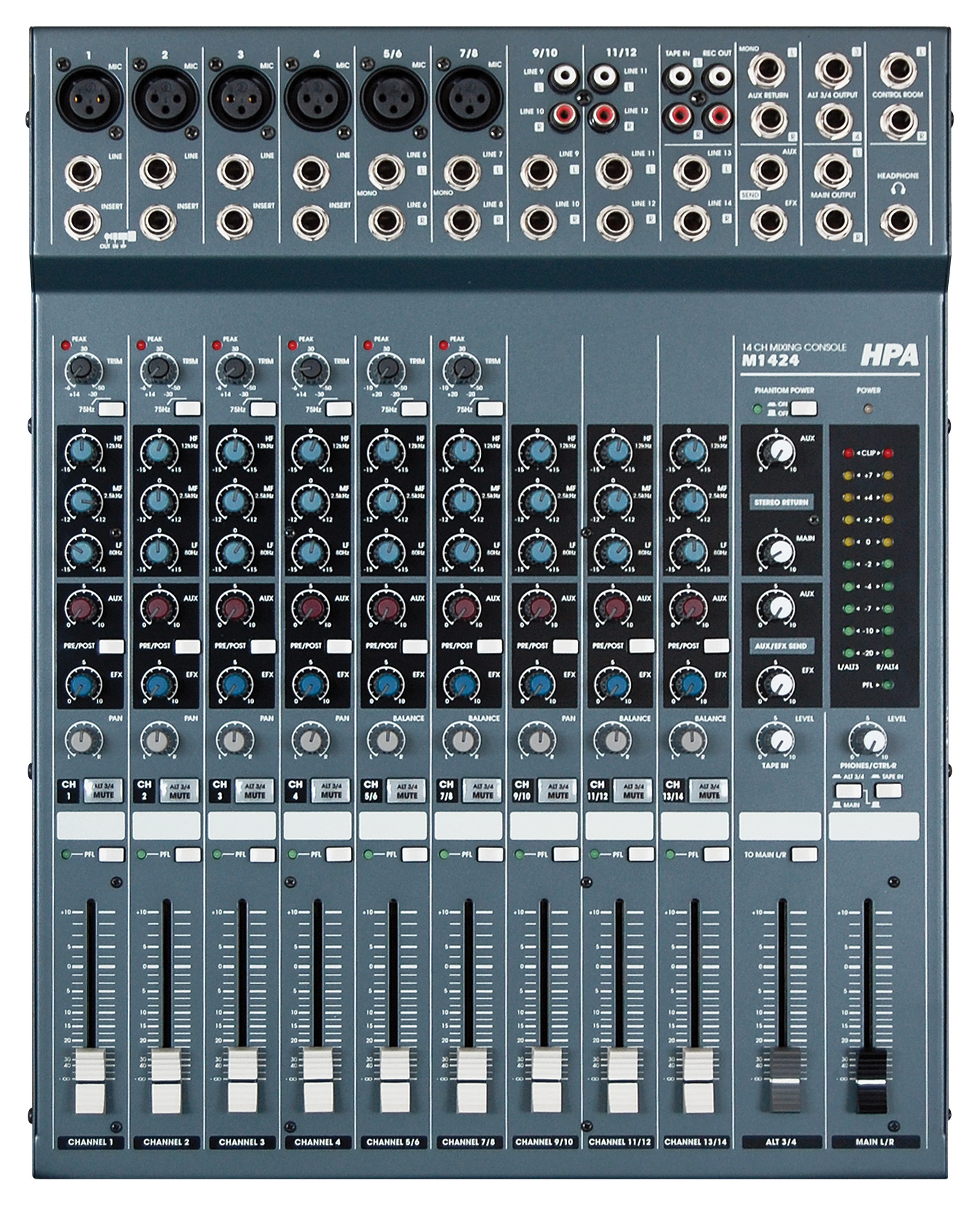

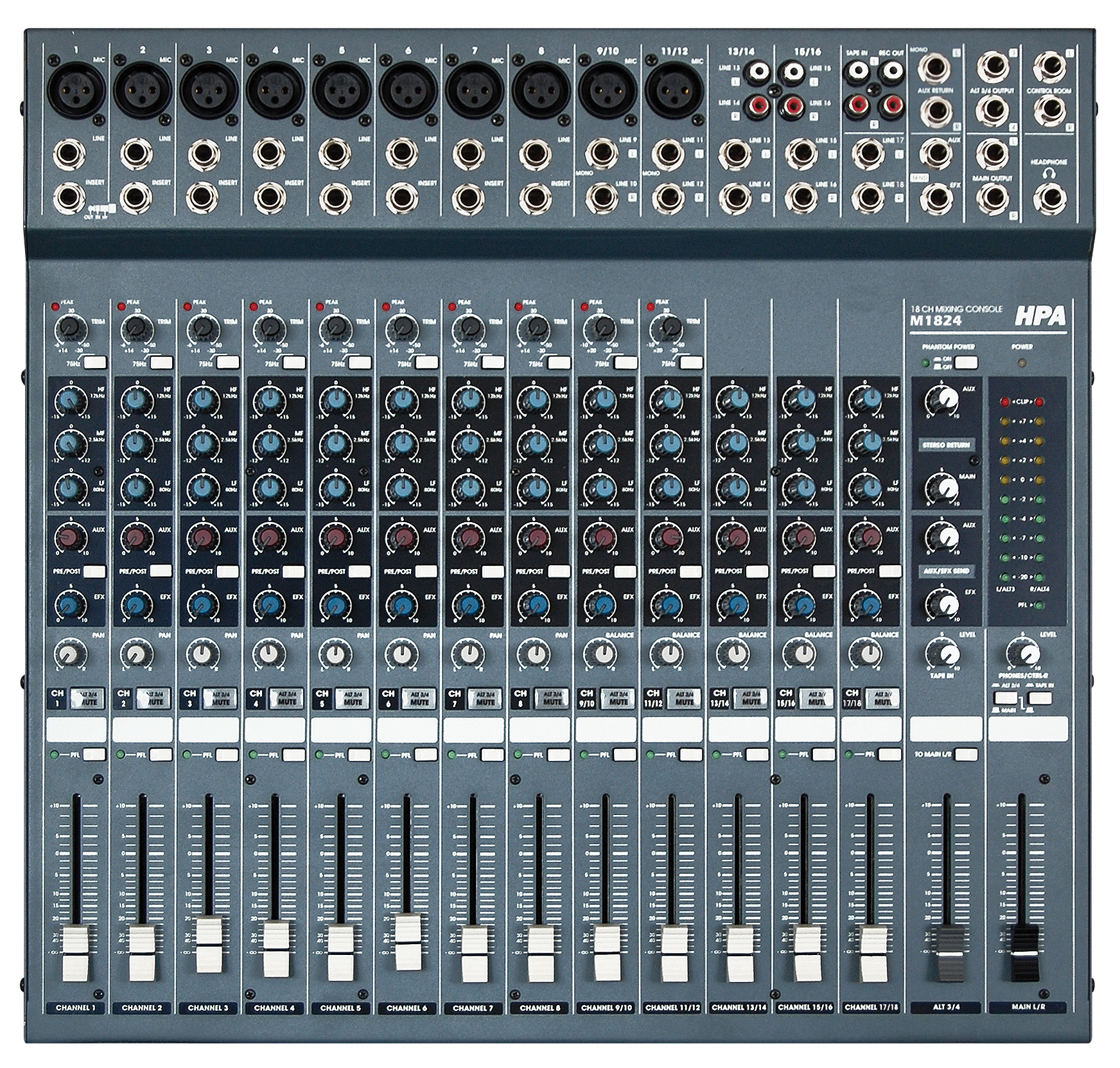

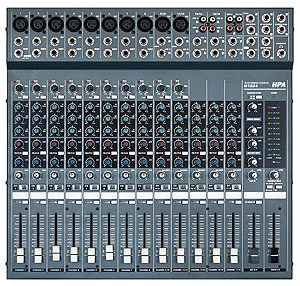

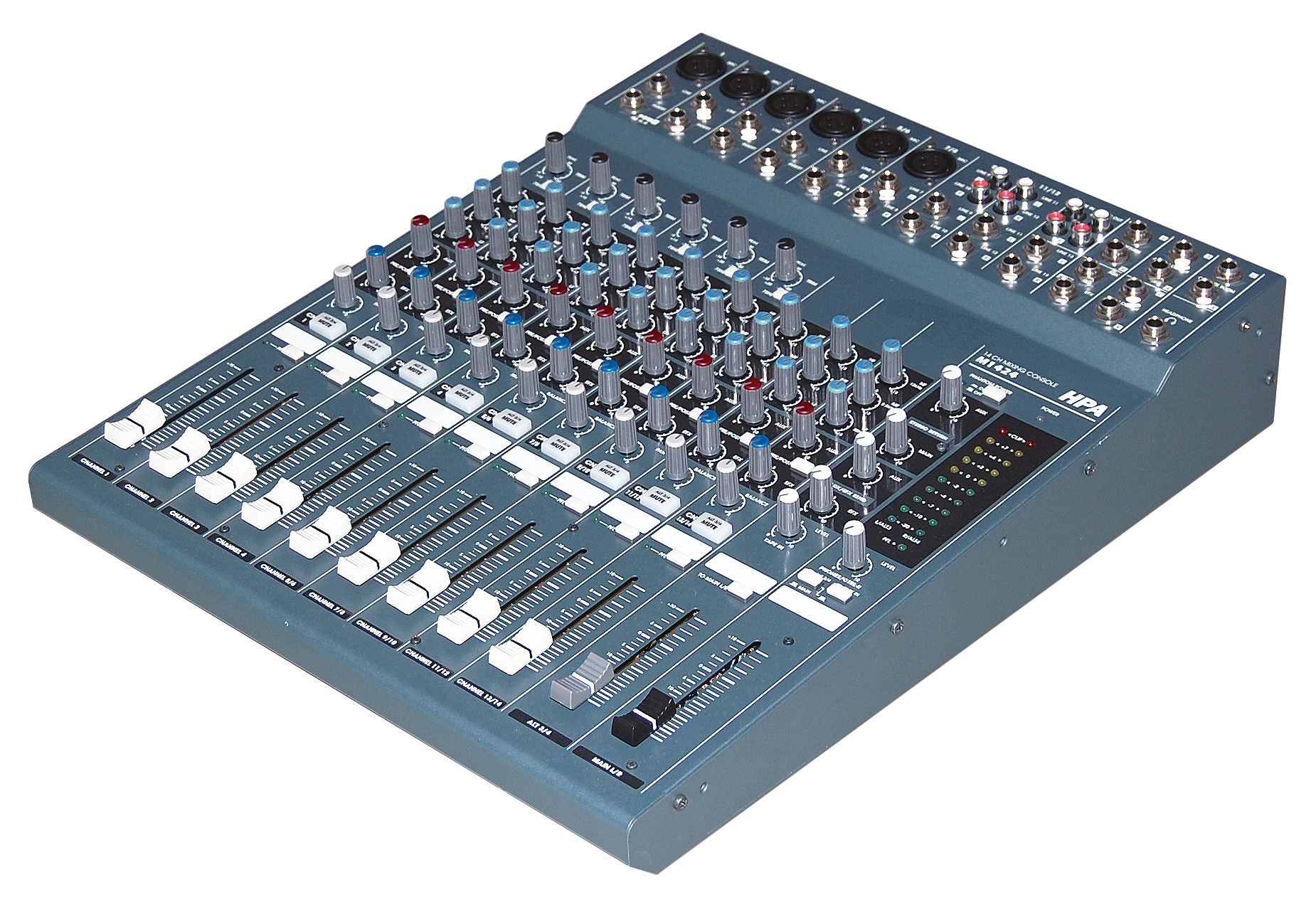

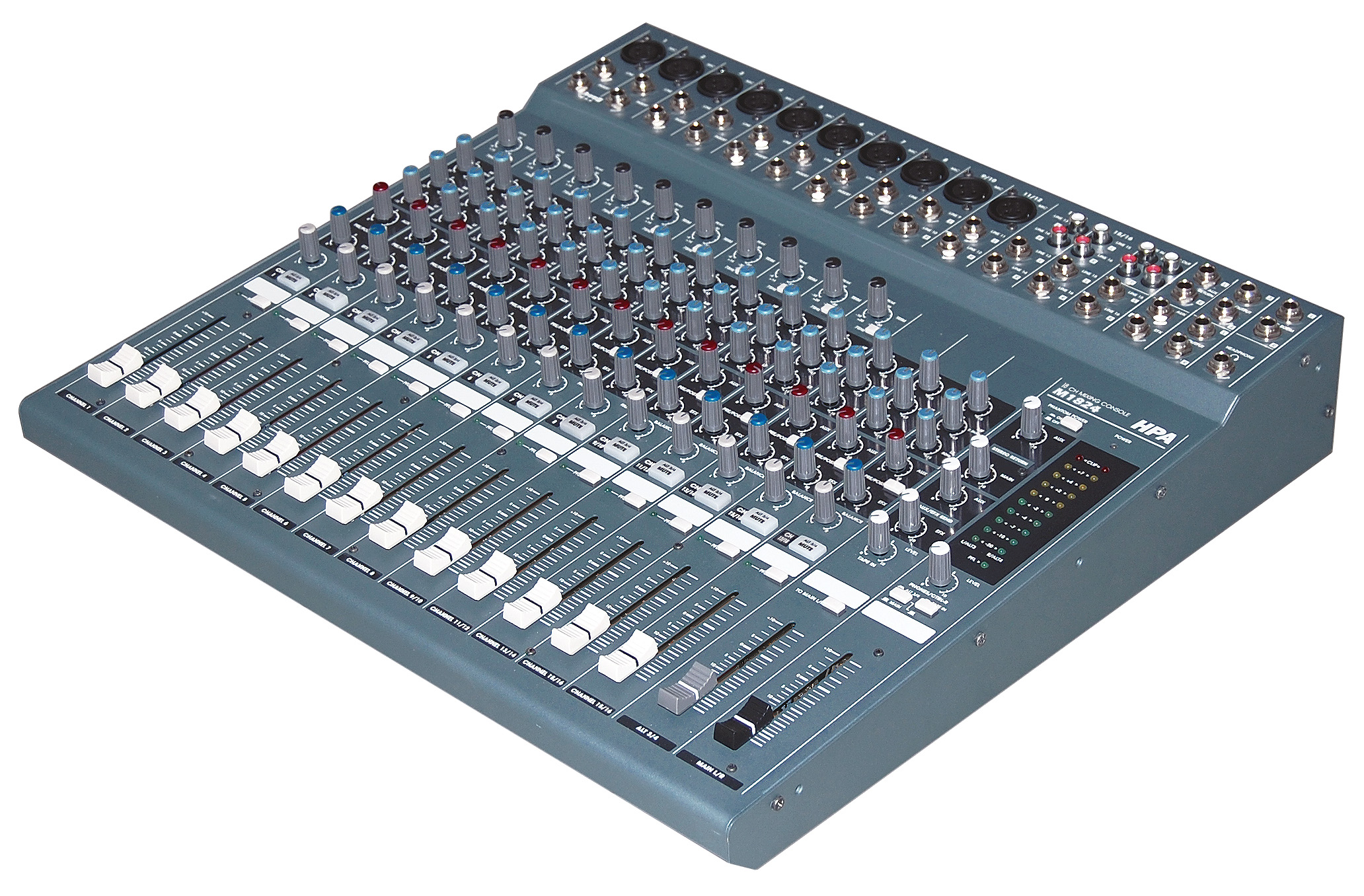

M 1424/1824/1424-USB/1824-USB
14/18 Channel 4-Bus Mixing Console |
|
|
- Controls
- 4 mono (M1424)/8 mono (M1824) & 5 stereo channels Input
- Stereo Main output & ALT 3/4 output.
- Trim with Peak LED, HPF, 3-band EQ, 1 AUX with Pre/Post switch, 1 EFX, PAN, Mute & PFL switch for mono input.
- Trim with Peak LED, HPF (M1424: CH5-8, M1824: CH9-12), 3-band EQ, 1 AUX with Pre/Post switch, 1 EFX, BAL, Mute & PFL for stereo input.
- Main L/R with AFL switch, ALT3/4 with AFL, To Main switch, AUX Send, EFX send, AUX return & EFX return
- Tape with PFL switch, HP/Control Room & Phantom Power
- Input Connectors
- XLR & 1/4” phone jack balanced & 1/4” phone jack for Insert on mono input
- XLR &1/4”phone jack for stereo (M1424: CH5-8, M1824: CH9-12)
- 1/4”phone & phono jack for stereo input (M1424: CH9-12, M1824: CH13-16)
- 1/4” phone jack for stereo return & phono jack for Tape
- Output Connectors
- XLR & 1/4”phone jack for Main, ALT 3/4, AUX Send, EFX Send, Contorl Room & Headphone
- Phono jack for Tape
- Indicator : Peak for each mono channel, PFL, Level meter, Phantom power
- USB Digital Audio In/Out (USB version)
- 19” standard rack mountable
|
| Specifications |
M1424 |
M1824 |
M1424-USB |
M1824-USB |
| Maximum Output Level |
24 dBm |
| Frequency Response (-1 dB) |
20 Hz - 20 kHz |
| T.H.D |
< 0.01 % |
| Crosstalk |
> 70 dB |
| Hum & Noise |
EIN |
> 127 dB |
| Residual |
> 100 dB |
| Main,ALT3/4,AUX,EFX output |
> 80 dB |
| Equalization |
High |
12 kHz ±15 dB |
| Mid |
2.5 kHz ±12 dB |
| Low |
80 Hz ±15 dB |
| Digital Input/Output |
N/A |
USB Audio 1.1
44.1/48KHz 16bit, USB B type |
| Power Source |
AC 100~240 V, 50/60 Hz |
| Weight (Net) |
3.4 kg |
5.6 kg |
3.4 kg |
5.6 kg |
| Dimensions (W x H x D) |
328 x 420 x 65 mm |
436 x 420 x 65 mm |
328 x 420 x 65 mm |
436 x 420 x 65 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
