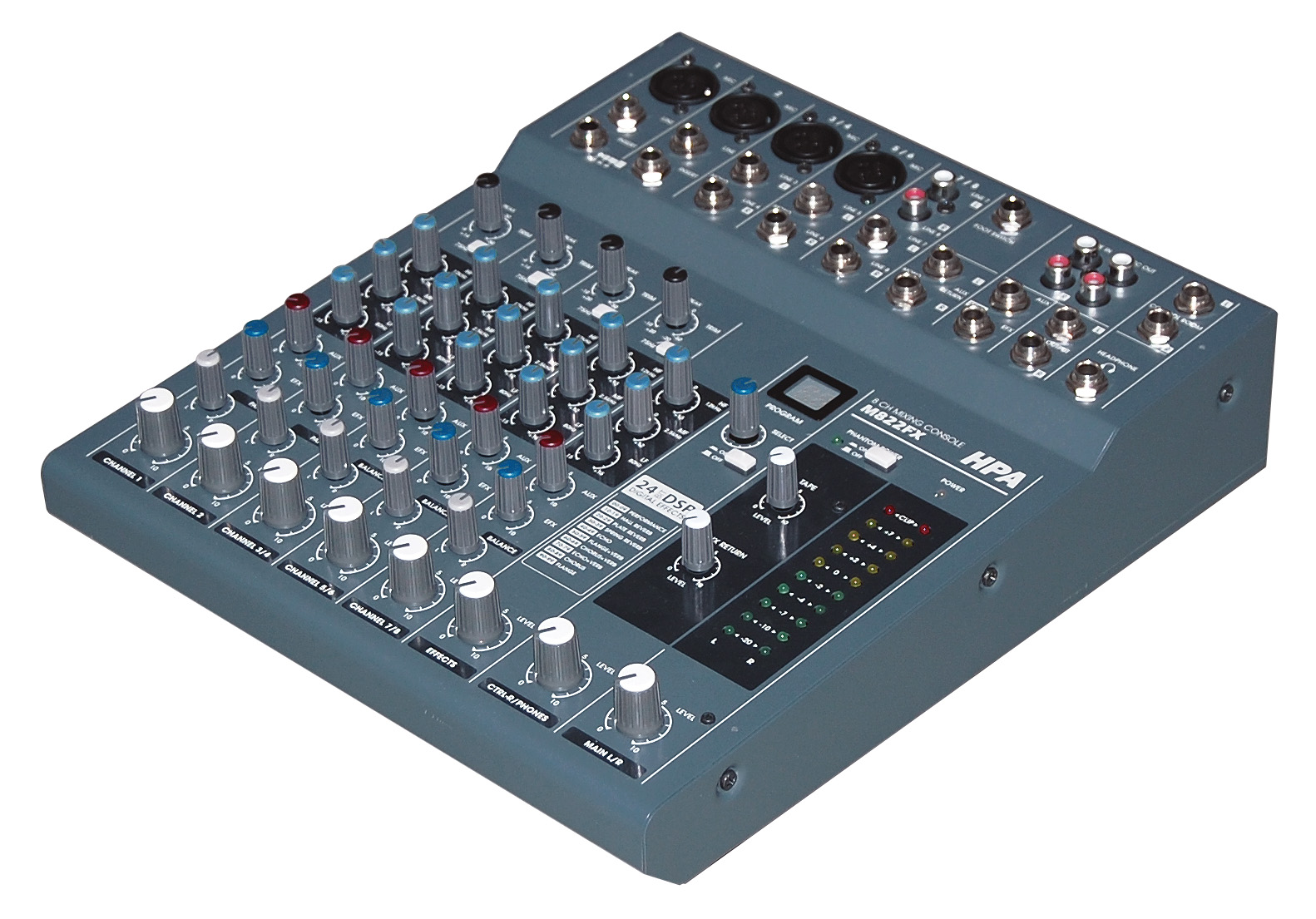

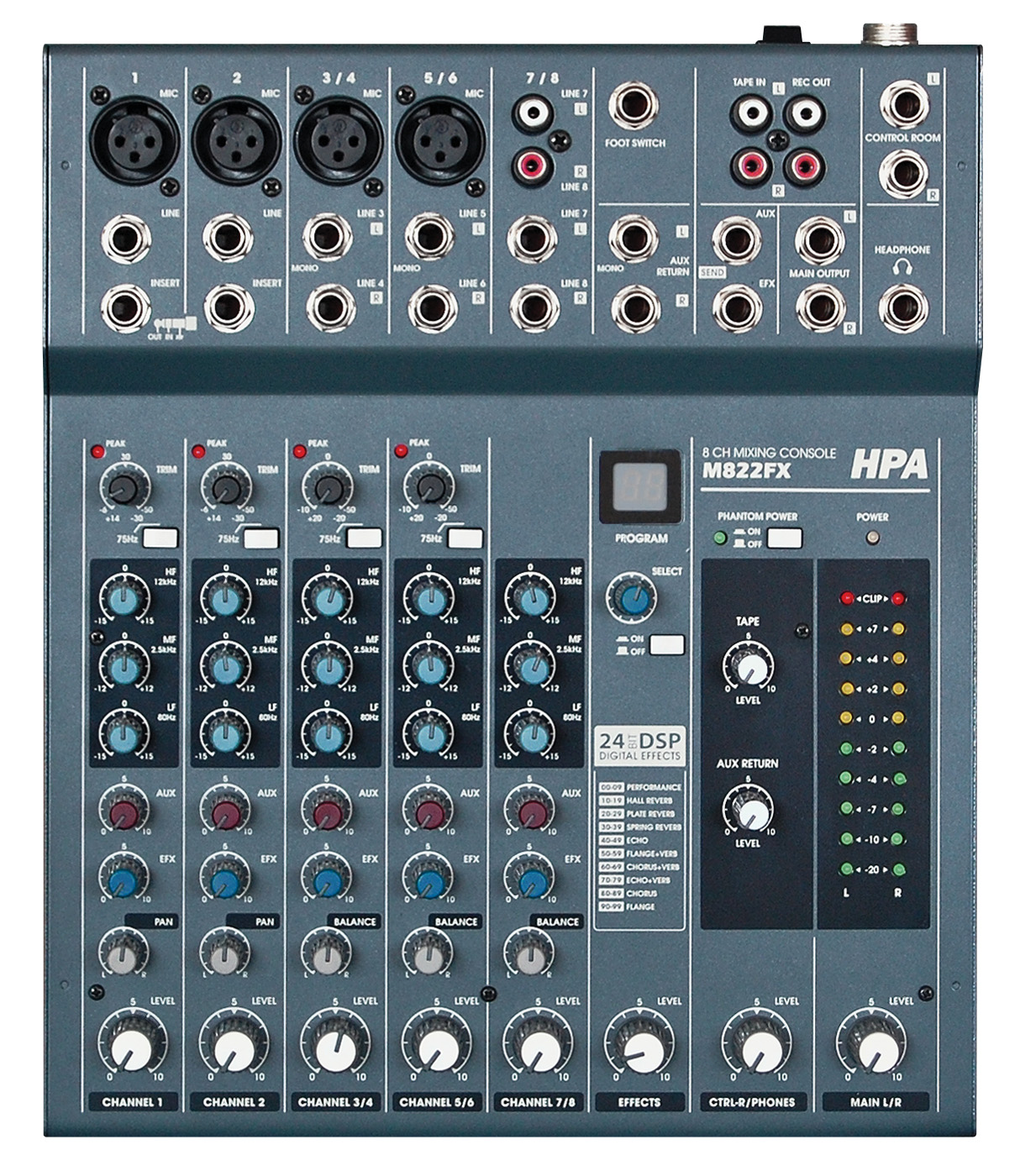

M 822FX/822FX-USB

8 Channel Stereo Mixing Console

  • Controls
    - 2 mono & 3 stereo channels input & stereo main output
    - Trim with Peak LED, HPF, 3-band EQ, 1 AUX, 1 EFX & PAN for mono input
    - Trim with Peak LED, HPF (CH3-CH6), 3-band EQ. 1 AUX, 1EFX & balance for stereo input
    - Main L/R, HP/Control Room, AUX Return, Tape Level & Phantom Power
    - 24 bit DSP effect 100 presets, EFX ON/OFF & EFX level
  • Input Connectors
    - XLR & 1/4” phone jack balanced & 1/4” phone jack for insert on mono input
    - XLR & 1/4” phone jack for stereo (CH3-CH6), 1/4” phone & phono jack for stereo input (CH7-CH8)
    - 1/4” phone jack for stereo return & phono jack for Tape
  • Output Connectors
    - 1/4” phone jack & XLR balanced for Main, 1/4” phone jack for
    AUX, Control Room & Headphone
    - phono jack for Tape, 1/4” phone jack for Footswitch
  • USB Digital Audio In/Out (USB version)
  • Indicator: Peak for each mono channel, PFL, Level meter, Phantom power
    & DSP program
Specifications M822FX M822FX-USB
Maximum Output Level 22 dBm
Frequency Response (-1 dB) 20 Hz - 20 kHz
T.H.D < 0.01 %
Crosstalk > 70 dB
Hum & Noise EIN > 127 dB
Residual > 100 dB
Main, AUX Output > 80 dB
Equalization High 12 kHz ±15 dB
Mid 2.5 kHz ±12 dB
Low 80 Hz ±15 dB
DSP Effect 24 bit / 100 Presets
Digital Input/Output N/A USB Audio 1.1
44.1/48KHz 16bit, USB B type
Power Source AC 100~240 V, 50/60 Hz
Weight (Net) 2.8 kg
Dimensions (W x H x D) 247 x 65 x 290 mm
*Specifications and design subject to change without notice for improvements.
