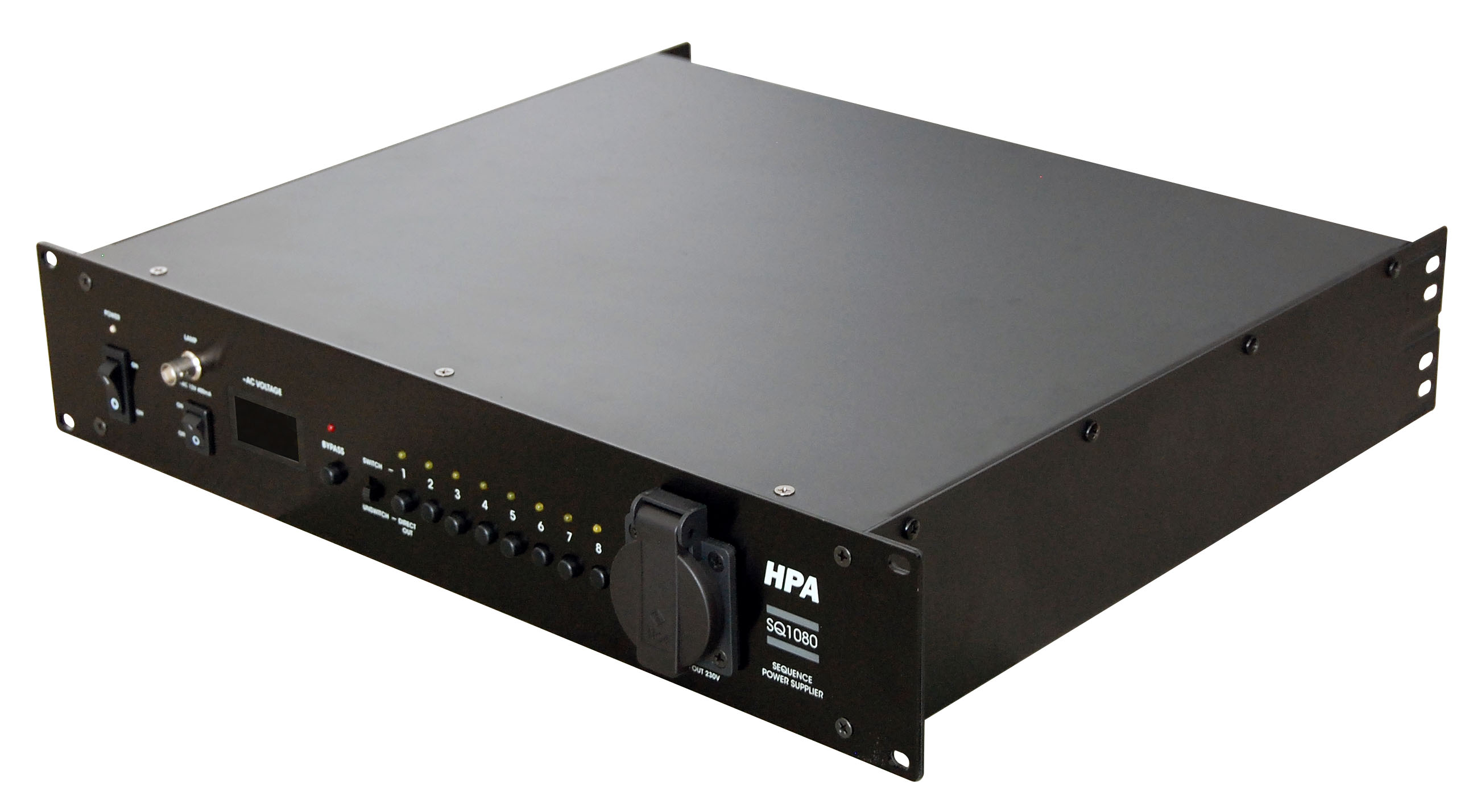

SQ 1080
Sequence Power Supplier |
|
|
- Controls
- Controls: Bypass SW, CH1 Direct SW, CH1-8 On/Off SW, Lamp On/Off SW
- Connectors

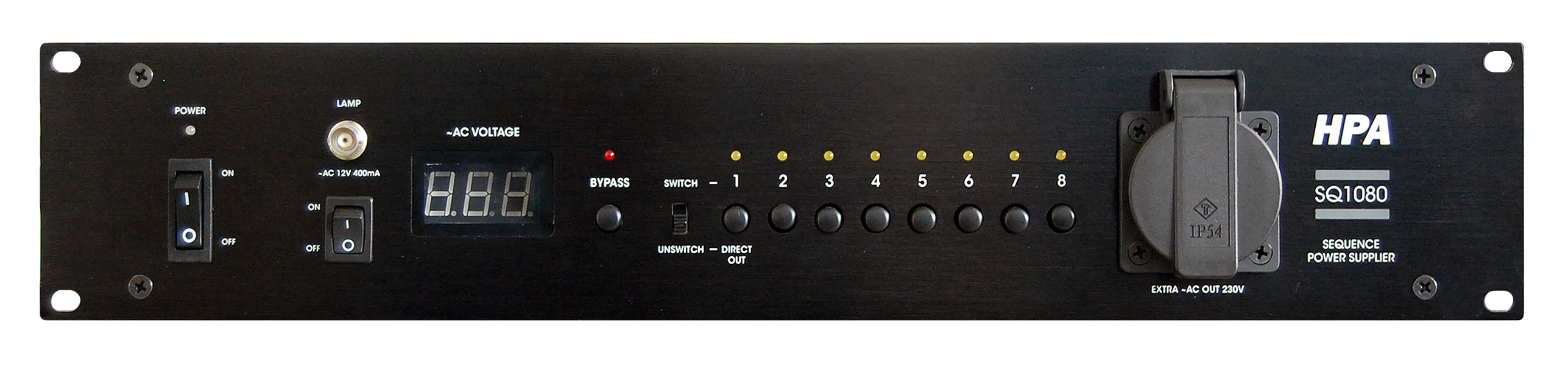

- Front: BNC jack for lamp, AC outlet for Direct output

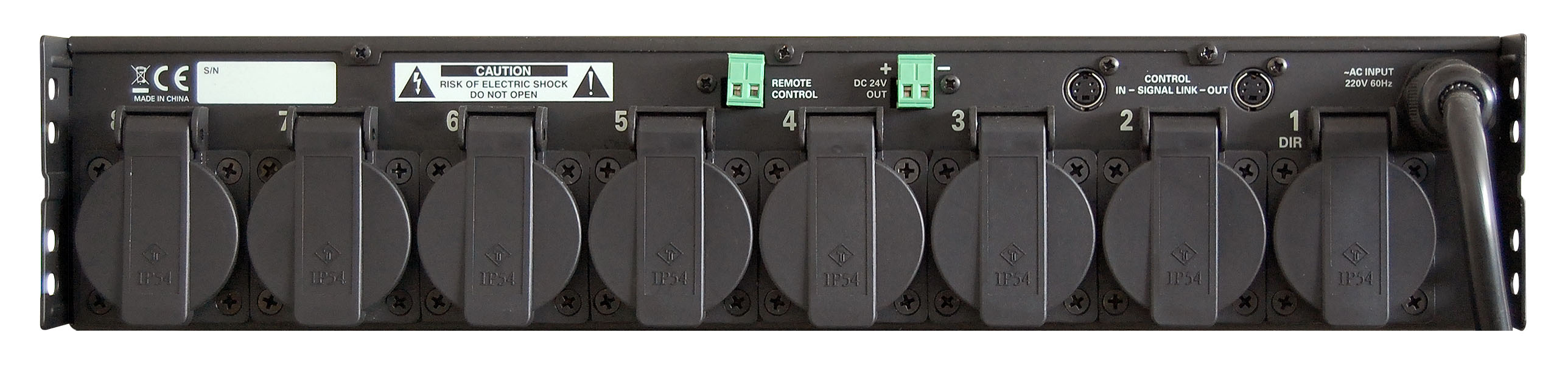

- Rear: AC Outlets for CH1-8 output, Screw terminals for DC output and Remote control & DIN jacks for Link in/output
- Indicator: Input Voltage, Power On, Bypass On, CH power On
|
| Specifications |
SQ1080 |
| Number of Sequence channels |
Direct switch On |
7 + 1 & Direct output |
| Direct switch Off |
8 & Direct output |
| Sequence interval time |
1 sec |
| Maximum AC Current capacity |
For each channel |
15 A |
| For whole channels |
45 A |
| DC output |
DC 24V, 2A |
| Lamp output |
AC 12V, 400mA |
| Power Source |
AC 220V-240V, 50/60Hz |
| Weight (Net) |
8.5 kg |
| Dimensions (W x H x D) |
482 x 89 x 392 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
