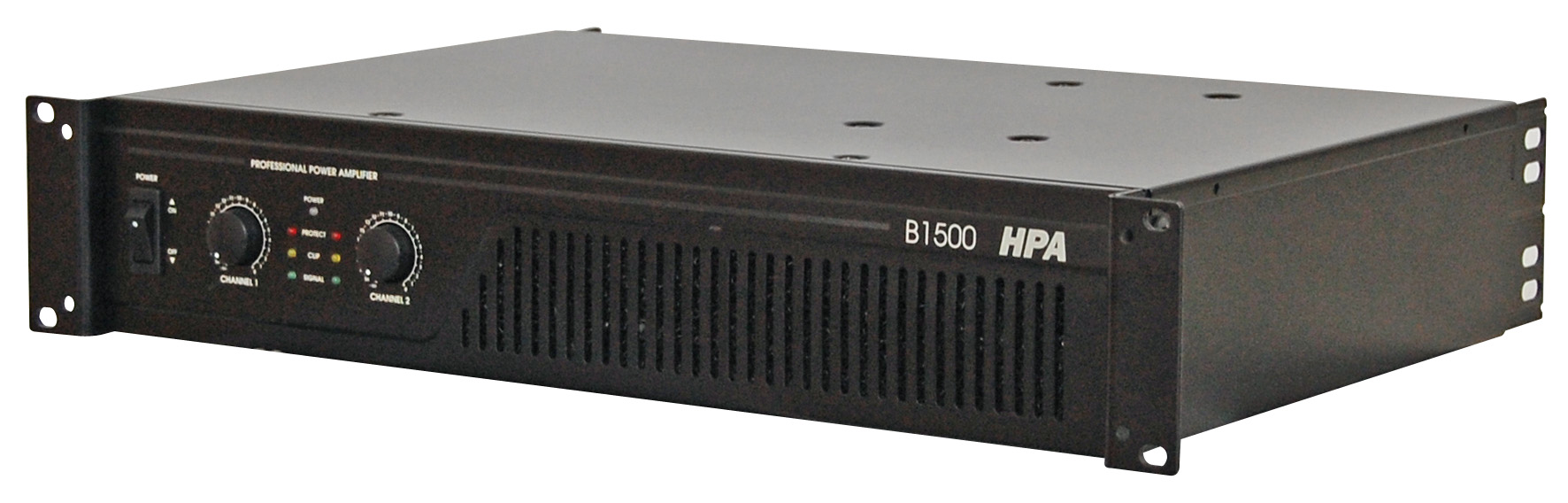

B 300/600/900/1200/1500
Professional 2U Power Amplifier |
|
|
- Controls

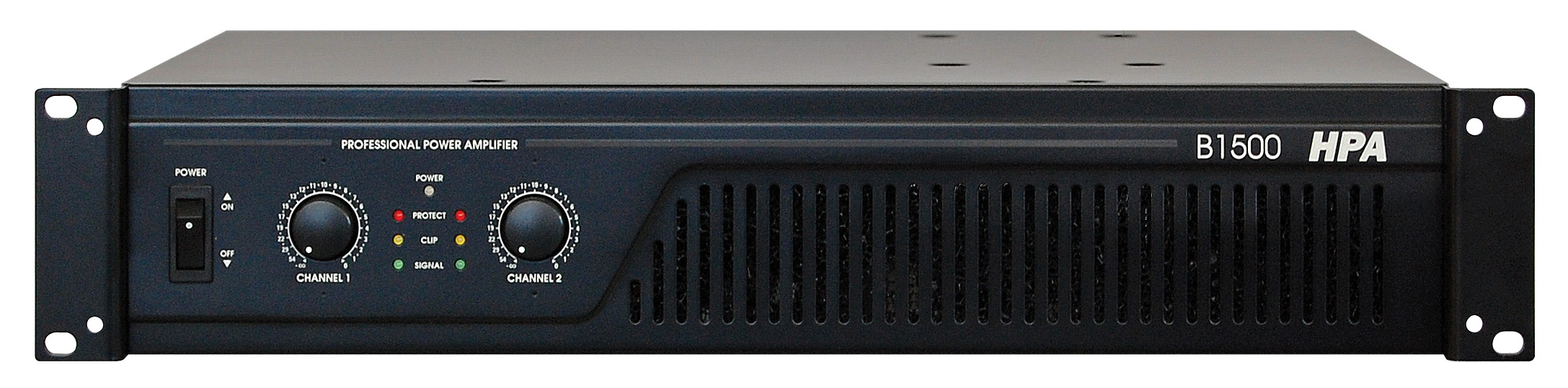

- Front: Volume control by 21 detent potentiometer for each channel

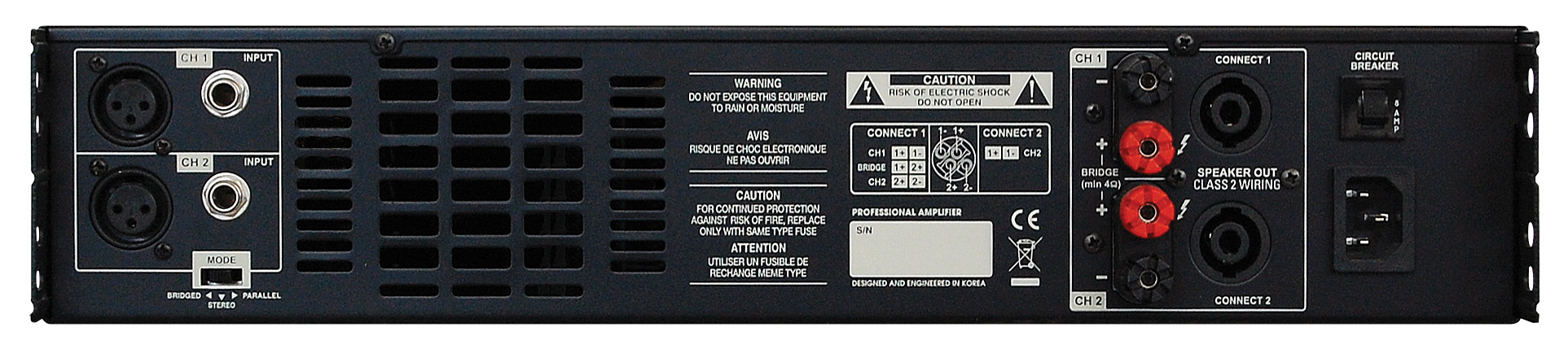

- Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)
- Connectors
- Input: XLR and TRS jack balanced •
- Output: 5-way binding post & Speakon® for each channel
- Indicator: Signal, Clip, Protect & Power
- Protection: Output current limiting, thermal protection, DC offset protection & fuse (or Circuit breaker)
- Cooling : 2 step speed fan forced cooling
|
| Specifications |
B300 |
B600 |
B900 |
B1200 |
B1500 |
Rate Power
(1 kHz, THD 1%) |
Stereo @ 8 Ω |
100 W |
200 W |
300 W |
400 W |
450 W |
| Stereo @ 4 Ω |
150 W |
300 W |
450 W |
600 W |
700 W |
| Bridge @ 8 Ω |
300 W |
600 W |
900 W |
1200 W |
1400 W |
| Input Sensitivity (4Ω, 1 kHz) |
4 dBu |
| Input Impedance |
30 kΩ Balanced / 15 kΩ Unbalanced |
| Input CMRR (1 kHz) |
> 60dB |
| Slew Rate (8Ω) |
40 V/msec |
| Frequency Response (±0.5dB) |
20 Hz ~ 20 kHz |
| Class |
AB |
| T.H.D (1 kHz, Rated Power) |
< 0.03 % |
| Signal to Noise Ratio |
> 100 dB |
| Damping Factor (8 Ω, 400 Hz) |
> 200 |
| Channel Separation (8 Ω, 1 kHz) |
> 80 dB |
| Power Source |
AC 100~240 V, 50/60 Hz |
| Weight (Net) |
12.6 kg |
15.2 kg |
14.2 kg |
15.7 kg |
16.2 kg |
| Dimensions (W x H x D) |
482 x 88 x 330 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
