A 4000/5000
Professional 3U Power Amplifier |
|
|
- Controls

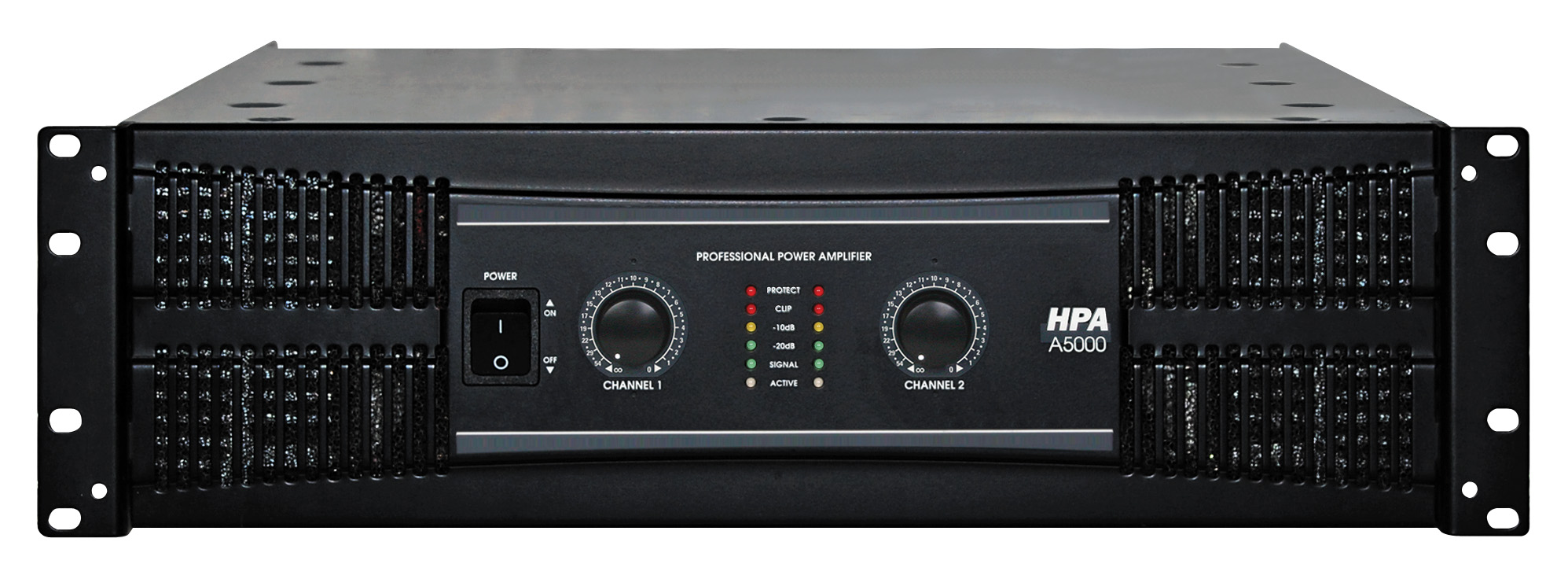

- Front: Volume control by 21 detent potentiometer for each channel

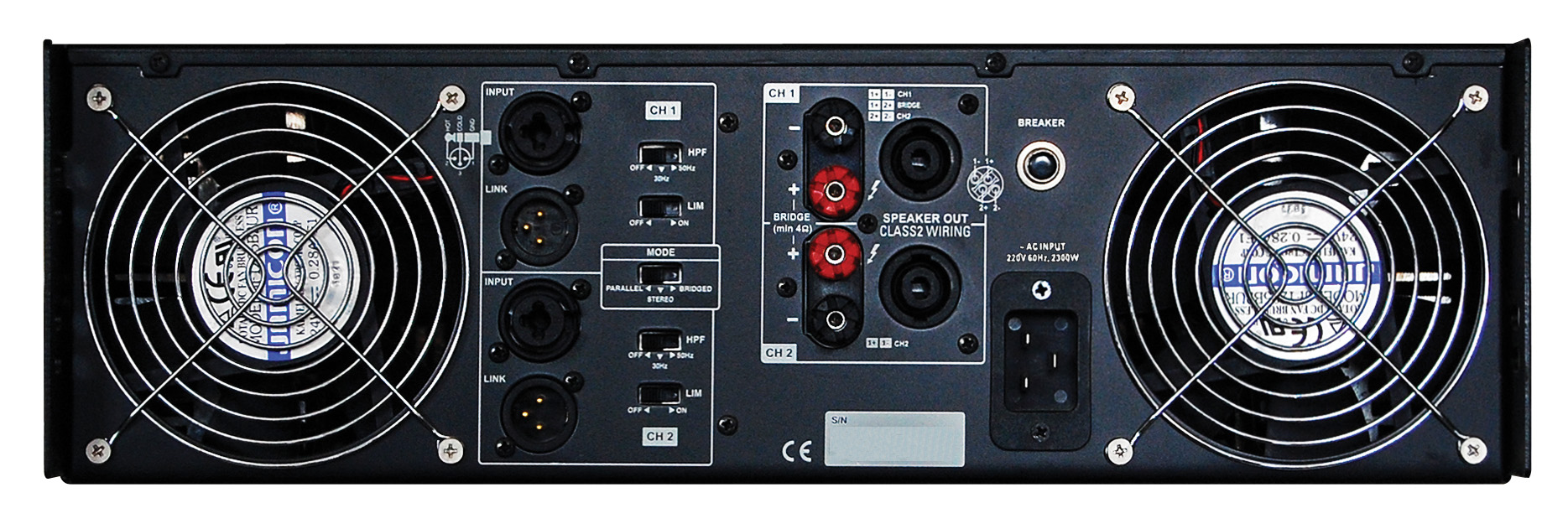

- Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)
- HPF: On/Off switch for each channel
- Limiter: On/Off switch for each channel
- Connectors
- Input: Combo jack electronically balanced & XLR male for input link
- Output: 5-way binding post & Speakon® connector for each channel
- Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active
- Protection: Output current limiting, thermal protection, DC offset protection & circuit breaker
- Cooling : Variable speed fan forced cooling
|
| Specifications |
A4000 |
A5000 |
Rate Power
(1 kHz, THD 0.5%) |
Stereo @ 8 Ω |
900 W |
1100 W |
| Stereo @ 4 Ω |
1400 W |
1800 W |
| Stereo @ 2 Ω |
2000 W |
2500 W |
| Bridge @ 8 Ω |
2600 W |
3600 W |
| Bridge @ 4 Ω |
4000 W |
5000 W |
| Input Sensitivity (4Ω, 1 kHz) |
4 dBu |
| Input Impedance |
30 kΩ Balanced / 15 kΩ Unbalanced |
| Input CMRR (1 kHz) |
> 60dB |
| Slew Rate (8Ω) |
40 V/msec |
| Frequency Response (±0.5dB) |
20 Hz ~ 20 kHz |
| Class |
H |
| T.H.D (1 kHz, Rated Power) |
< 0.03 % |
| Signal to Noise Ratio |
> 100 dB |
| Damping Factor (8 Ω, 400 Hz) |
> 400 |
| Channel Separation (8 Ω, 1 kHz) |
> 80 dB |
| Power Source |
AC 100~240 V, 50/60 Hz |
| Weight (Net) |
31 kg |
33 kg |
| Dimensions (W x H x D) |
482 x 132 x 482 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
