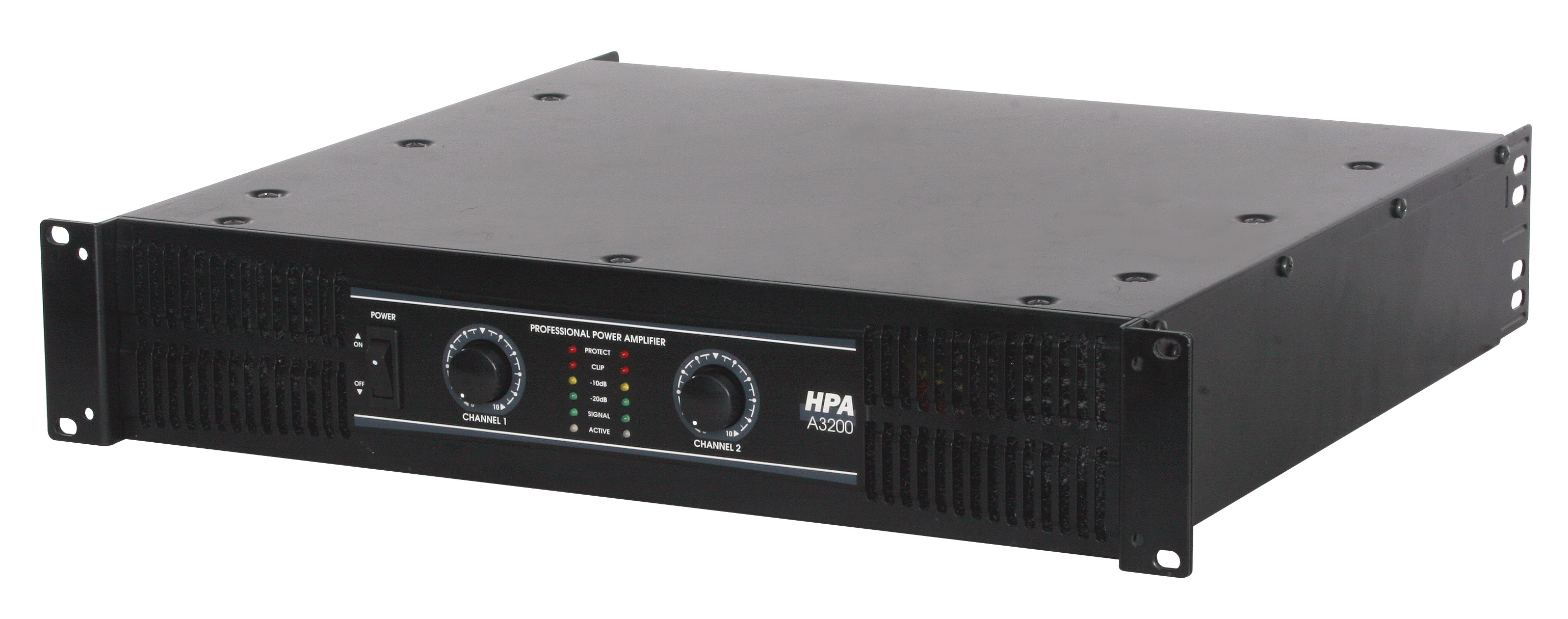

A 900/1400/1800/2400/2800/3200
Professional 2U Power Amplifier |
|
|
- Controls

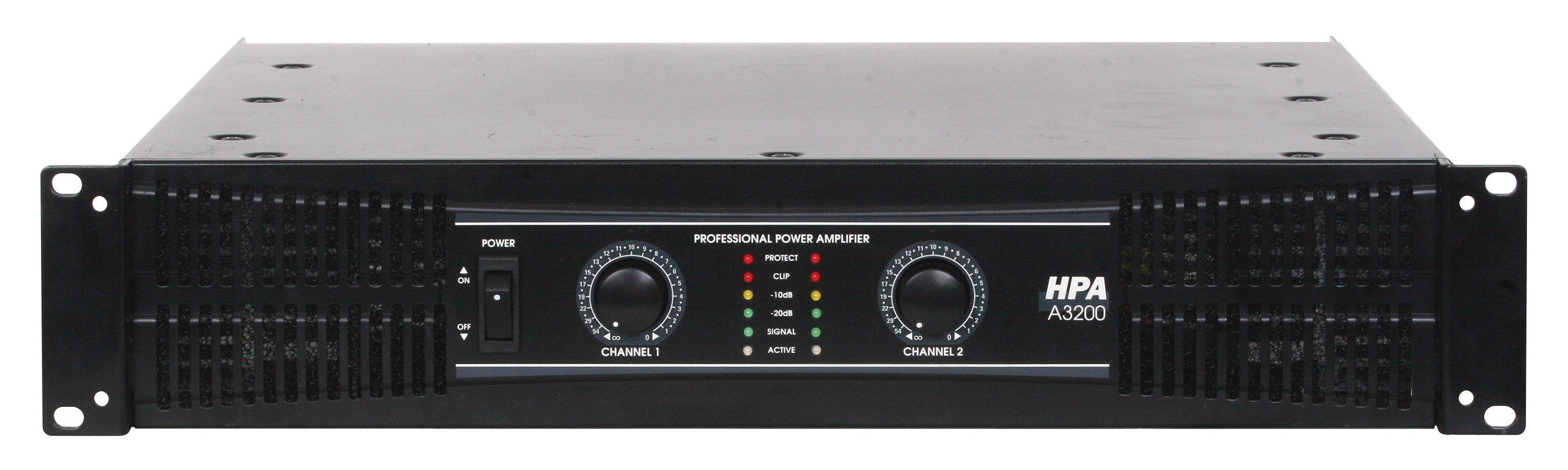

- Front: Volume control by 21 detent potentiometer for each channel
- Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)
- HPF: On/Off switch for each channel
- Limiter: On/Off switch for each channel

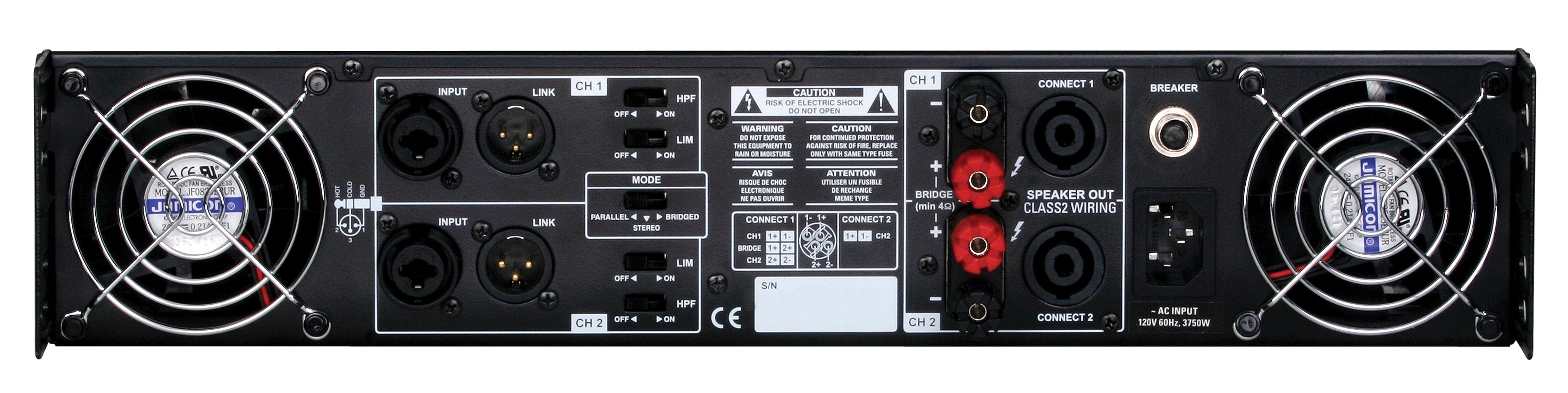

- Connectors
- Input: Combo jack electronically balanced & XLR male for input link
- Output: 5-way binding post & Speakon® connector for each channel
- Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active
- Protection: Output current limiting, thermal protection, DC offset protection & circuit breaker
- Cooling : Variable speed fan forced cooling
|
| Specifications |
A900 |
A1400 |
A1800 |
A2400 |
A2800 |
A3200 |
Rate Power
(1 kHz, THD 0.5%) |
Stereo @ 8 Ω |
210 W |
300 W |
400 W |
500 W |
600 W |
700 W |
| Stereo @ 4 Ω |
320 W |
450 W |
600 W |
750 W |
900 W |
1100 W |
| Stereo @ 2 Ω |
430 W |
700 W |
900 W |
1200W |
1400W |
1600 W |
| Bridge @ 8 Ω |
650 W |
900 W |
1200 W |
1400 W |
1800 W |
2200 W |
| Bridge @ 4 Ω |
850 W |
1400 W |
1800 W |
2400 W |
2800 W |
3200 W |
| Input Sensitivity (4Ω, 1 kHz) |
4 dBu |
| Input Impedance |
30 kΩ Balanced / 15 kΩ Unbalanced |
| Input CMRR (1 kHz) |
> 60dB |
| Slew Rate (8Ω) |
40 V/msec |
| Frequency Response (±0.5dB) |
20 Hz ~ 20 kHz |
| Class |
AB |
H |
| T.H.D (1 kHz, Rated Power) |
< 0.03 % |
| Signal to Noise Ratio |
> 100 dB |
| Damping Factor (8 Ω, 400 Hz) |
> 250 > 350 |
| Channel Separation (8 Ω, 1 kHz) |
> 80 dB |
| Power Source |
AC 100~240 V, 50/60 Hz |
| Weight (Net) |
12.6 kg |
15.4 kg |
18.0 kg |
18.8 kg |
20.7 kg |
21.4 kg |
| Dimensions (W x H x D) |
482 x 88 x 420 mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
